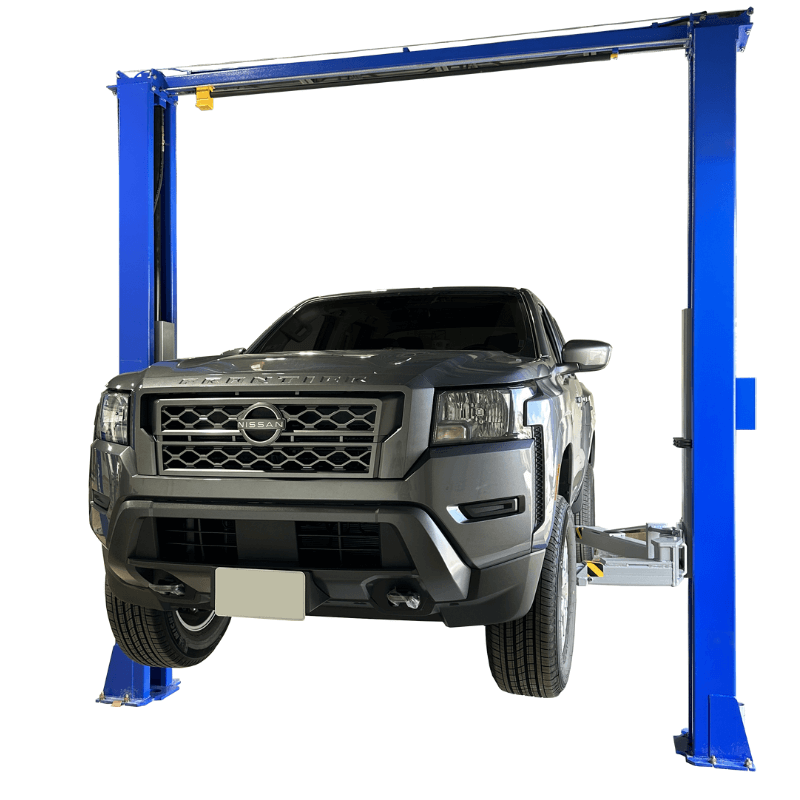

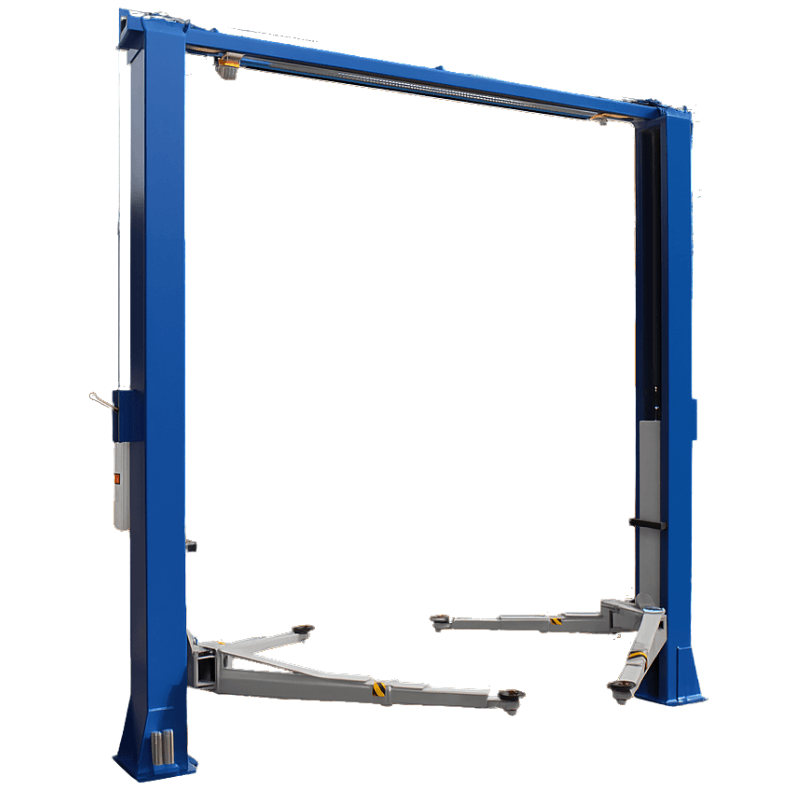

Tuxedo TP11KC DX 2 Post Lift

Tired of struggling with heavy-duty lifts that feel more like chores than helpers? Get ready to meet your new garage MVP: the Tuxedo TP11KC-DX. This isn't your average car lift. With a jaw-dropping 11,000-pound lift capacity, it can handle anything you throw at it. Its imposing stature—144 inches tall and 145.5 inches wide—provides ample workspace, while the 71-inch max lift height ensures you can reach every corner of your vehicle.

Imagine a lift that’s as smart as it is strong. The TP11KC-DX offers adjustable arms ranging from 23 to 45 inches short and 41 to 57 inches long, ensuring a perfect fit for any vehicle. Plus, features like rubber door guards, a single point lock release, and stackable adapters make every lift a breeze. Make a better garage. Upgrade to the TP11KC-DX and experience the difference a top-tier lift can make.

See our full line of Tuxedo Lifts.

Tuxedo 11k Lift Specifications:

• Lift model: TP11KC-DX

• Lift type: two post clear floor

• Capacity: 11,000 lbs

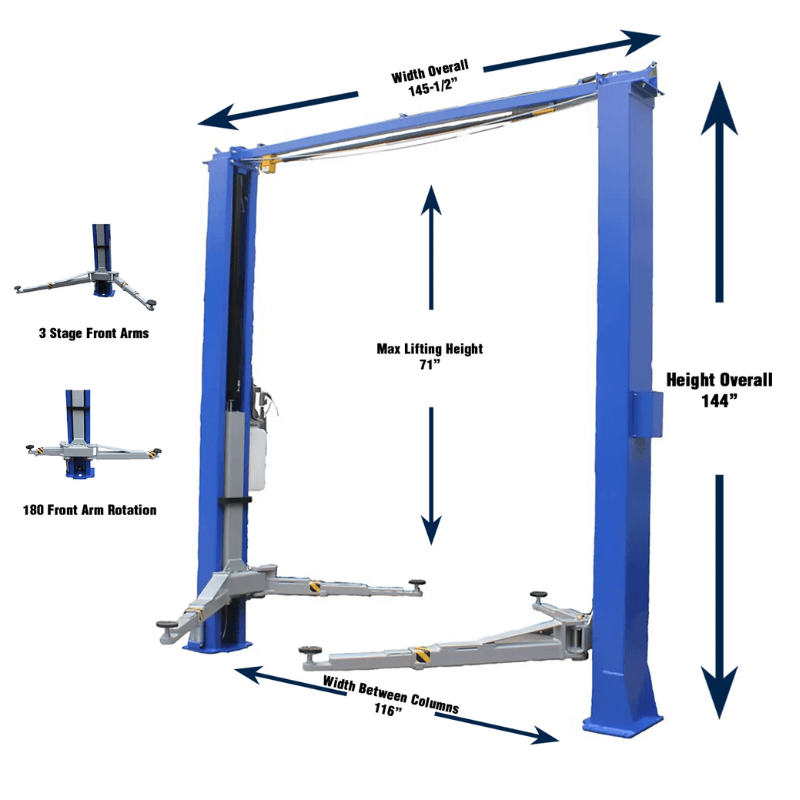

• Height overall: 144″

• Width overall with power unit: 145-1/2″

• Maximum lift height: 71″

• Width between columns: 116″

• Minimum pad height: 4″

• Drive-thru clearance: 104″

• Lifting speed: 50 seconds

• Arm configuration: asymmetric / symmetric

• Floor type: clear floor

• Short arm reach (min/max): 23″ – 45″

• Long arm reach (min/max): 41″ – 57″

• Narrow bay setting: not applicable

• Maximum load per arm: 2,750 lbs

• Shipping weight: 1,705 lbs

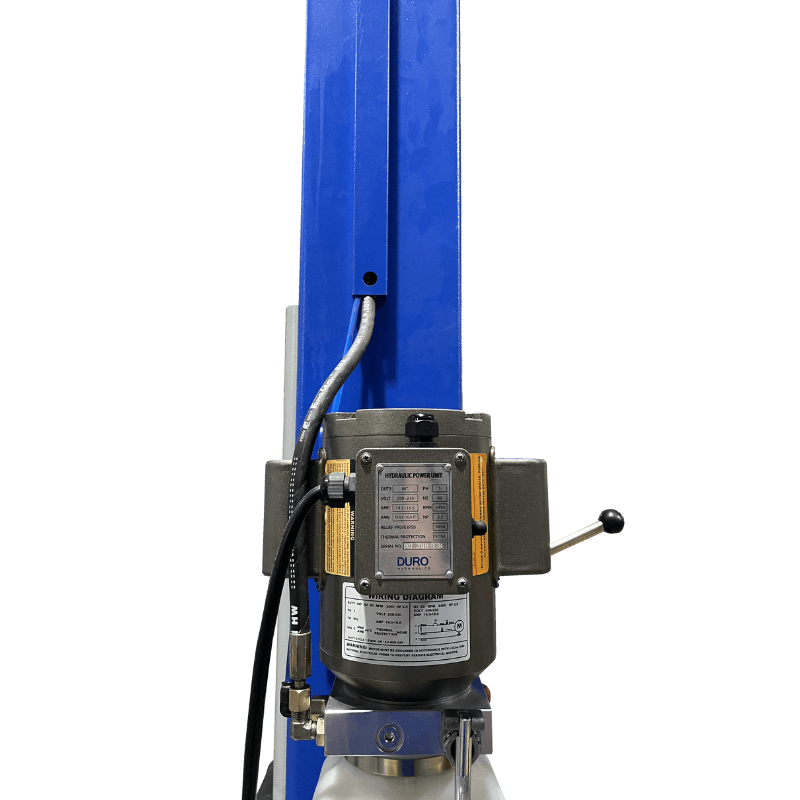

• Power requirement: 220V, 20 AMP, single phase

Hydraulic Lift TP11KC-DX Special Features:

• 11,000 lbs lifting capacity

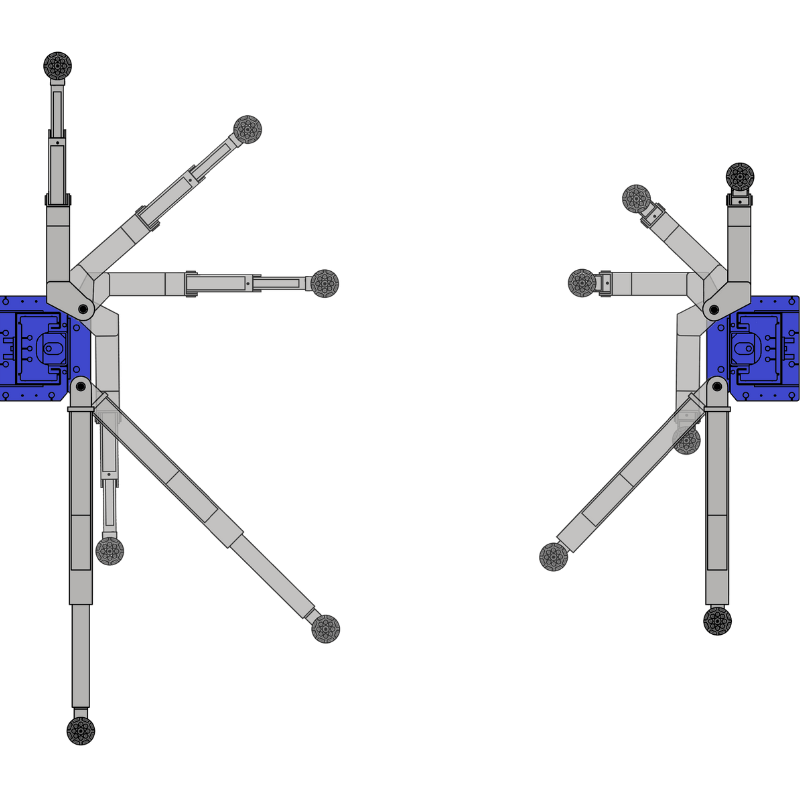

• Bi-symmetric arm design for flexible vehicle positioning

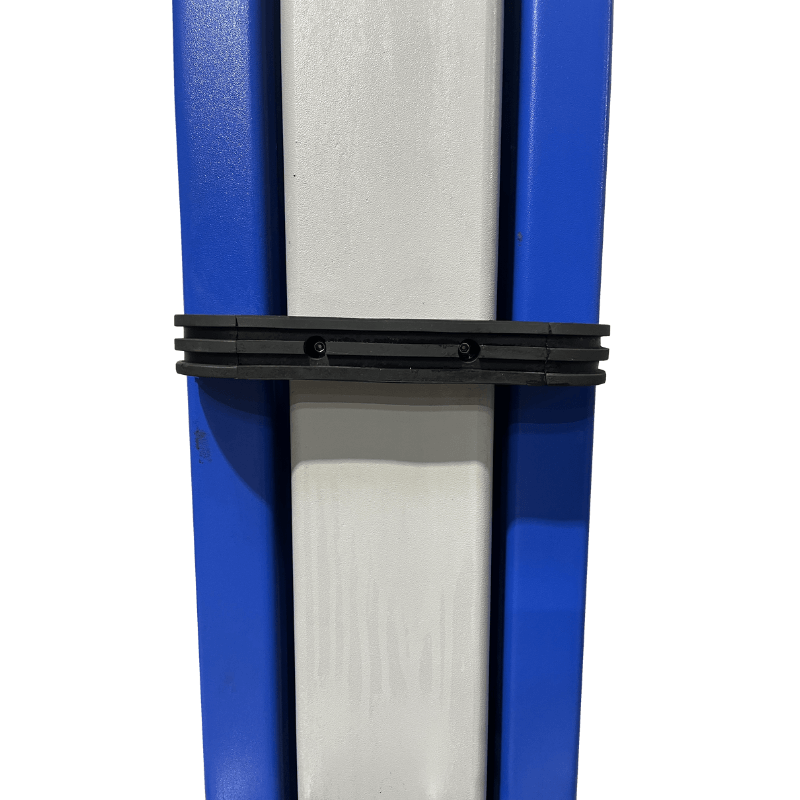

• Rubber door guards for added vehicle protection

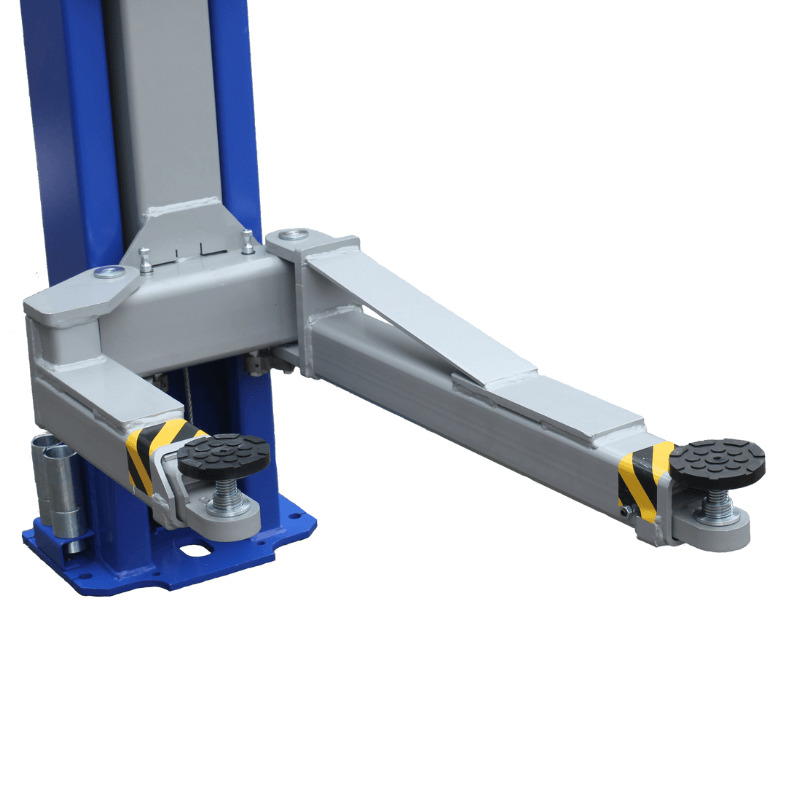

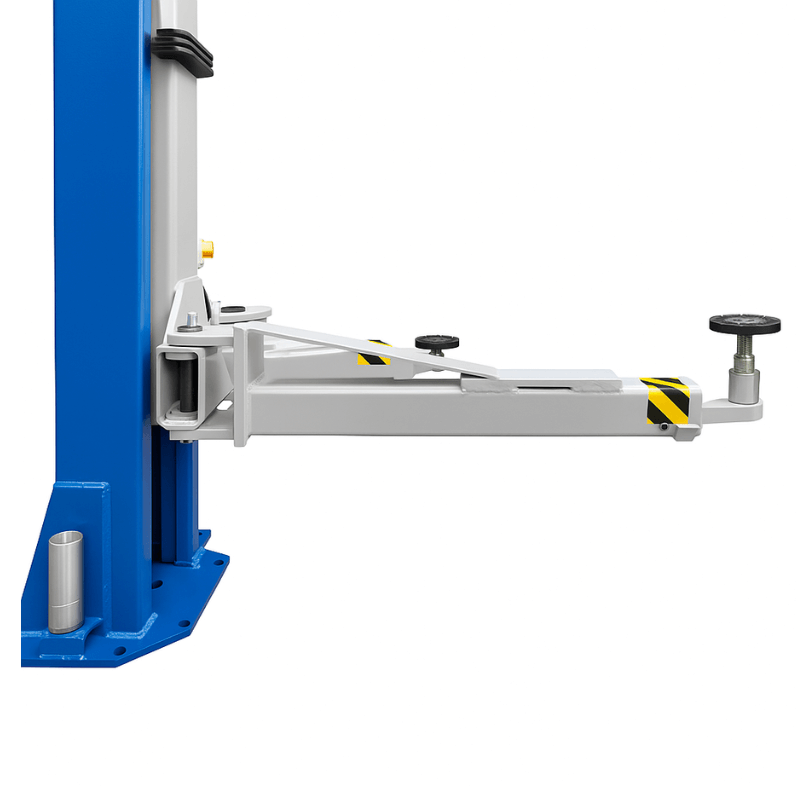

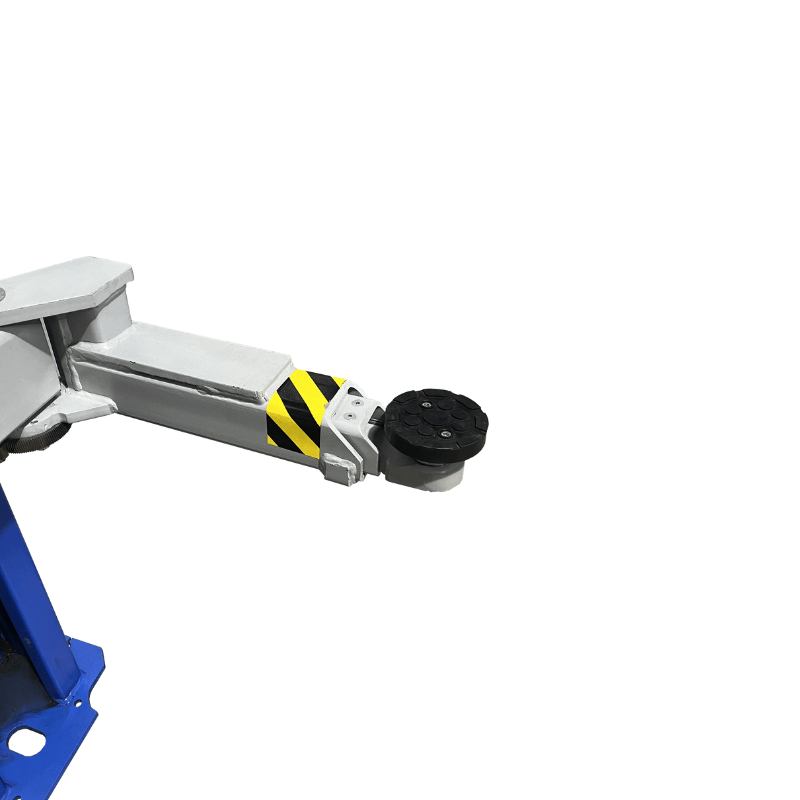

• 3-stage front arms for extended reach

• Single-piece column construction

• Direct drive pull cylinders

• Single point lock release system

• Heavy duty arm restraint system

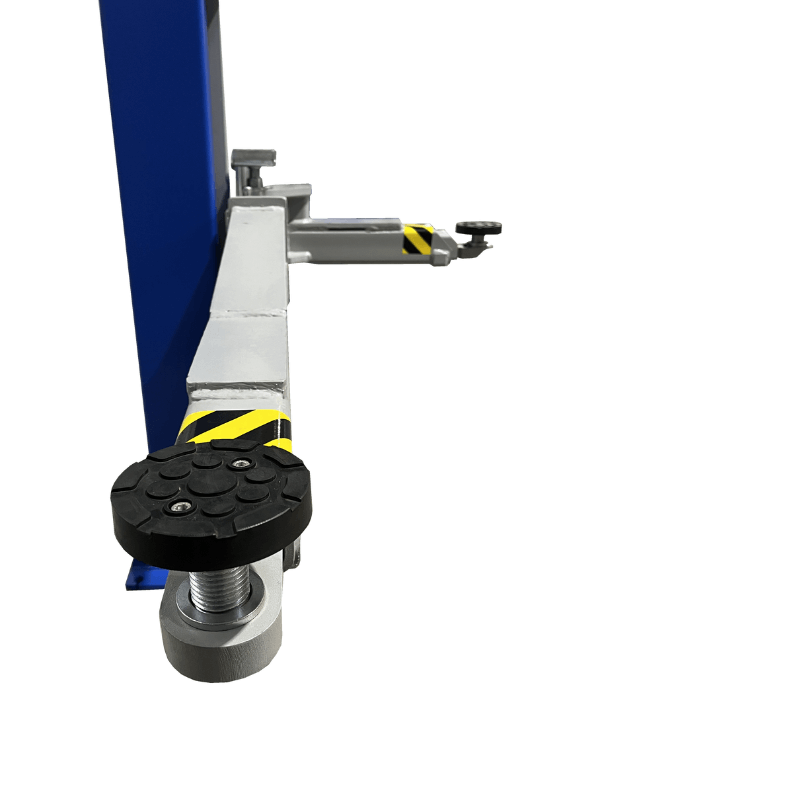

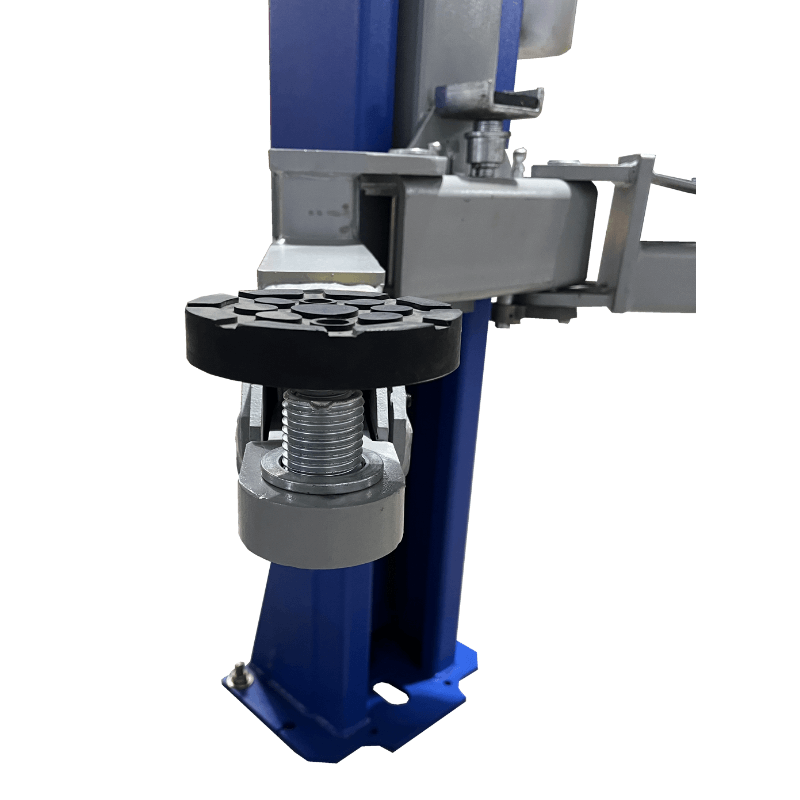

• Spin-up low profile lift pads

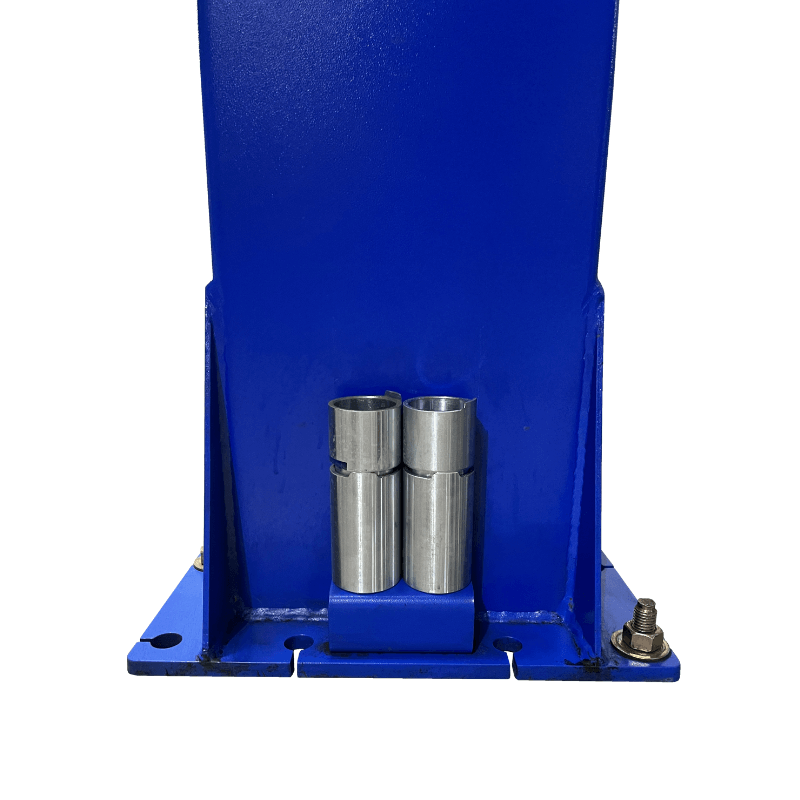

• Stackable adapters included

• External hose guards for added durability

• Optional Accessories (Sold Separately):
  • Spin up Cradle Adapters (TP11DX-SPNCA
  • Truck Spin up Adapters (TP11DX-GM19-SPNCA)

TP11KC DX Manual:

   Tuxedo TP11KC-DX Manual

  Tuxedo TP11KC-DX Brochure
