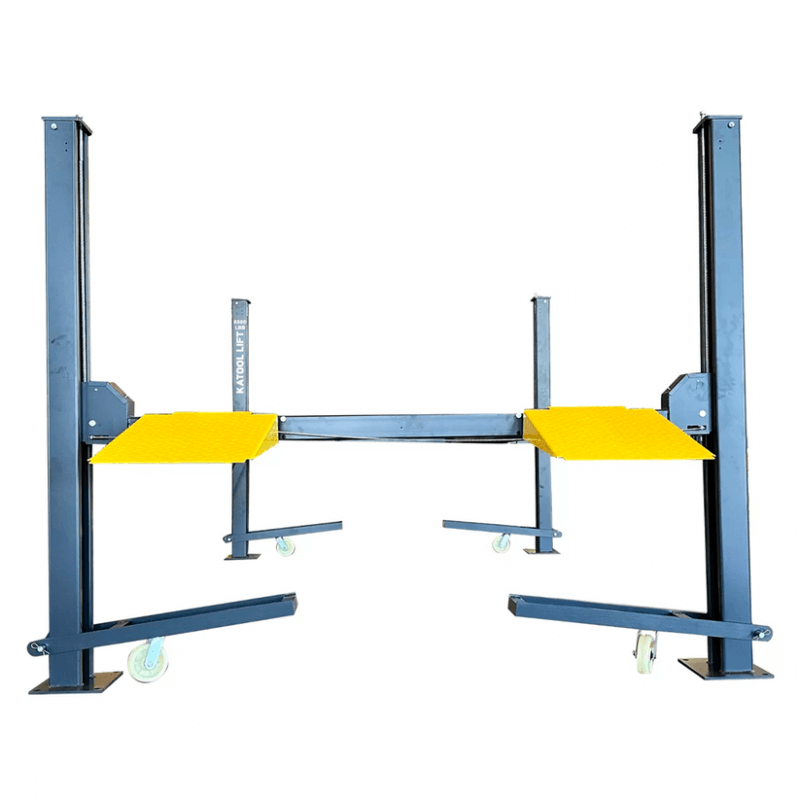

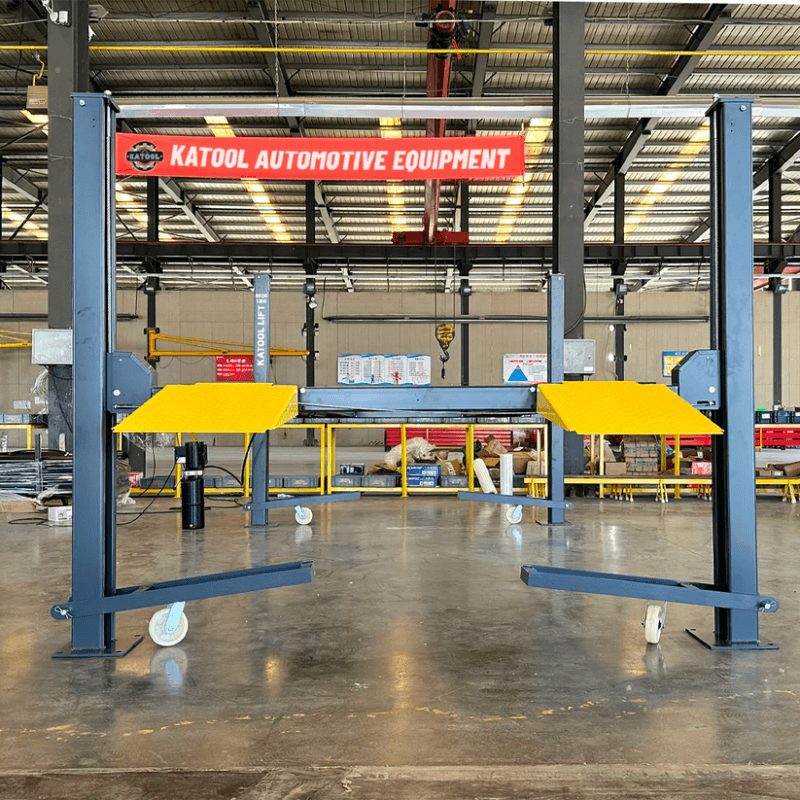

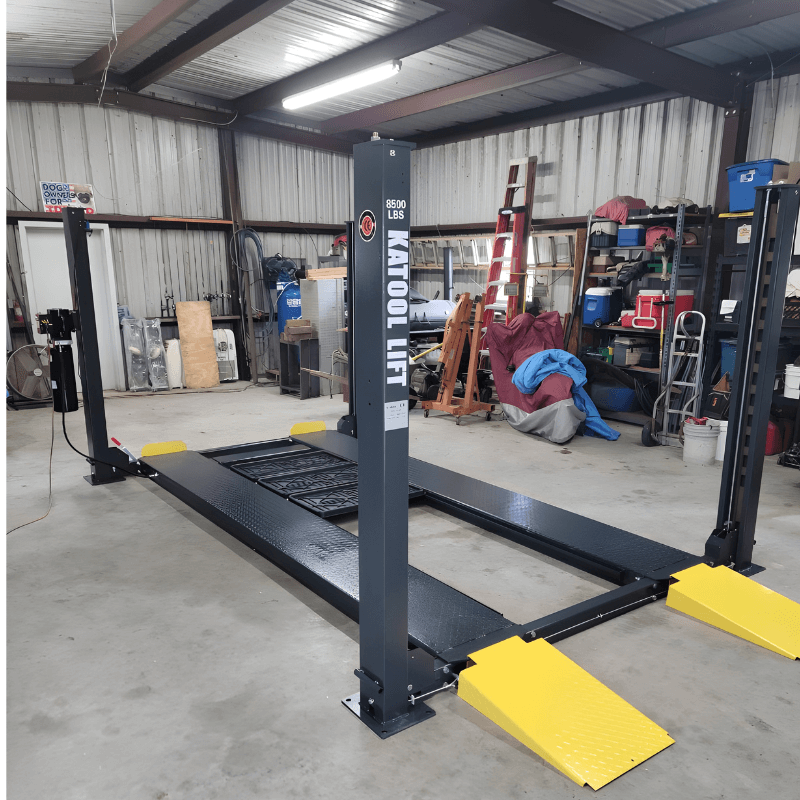

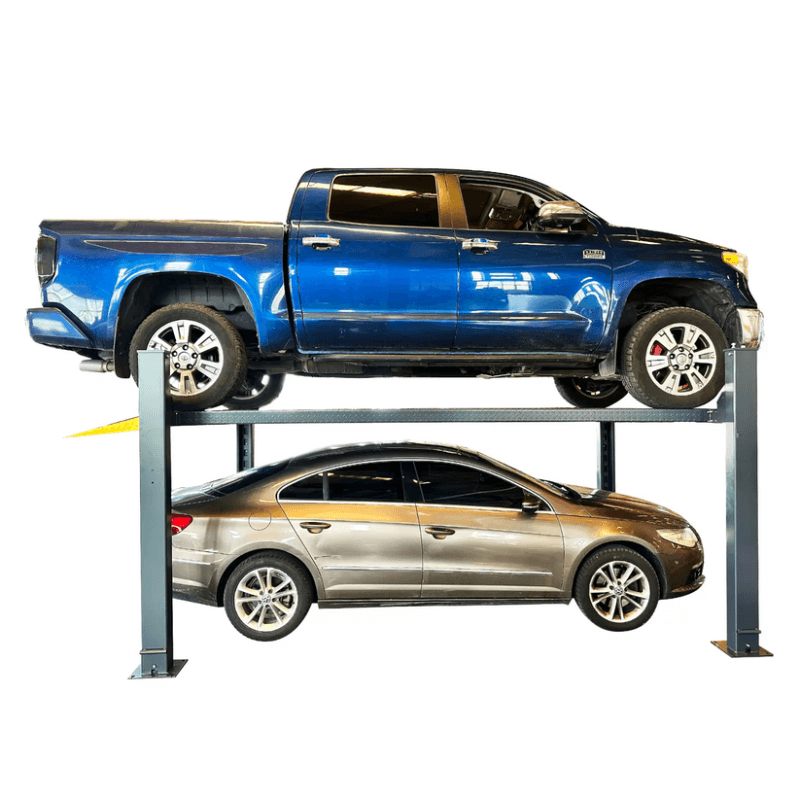

Katool 4H850 Vehicle Storage Lift

Limited garage space and a lack of a suitable lift make car storage and maintenance a constant challenge. The Katool KT-4H850 Parking Lift is your answer to a more organized and efficient garage. Featuring a remarkable 8,500-lb lifting capacity, this lift tackles most cars and even light trucks with ease. The KT-4H850 offers adjustable working heights up to 70.87 inches and a compact design that fits perfectly in virtually any garage.

This lift lets you maximize your limited space as it elevates cars for easy maintenance or storage. The KT-4H850 accommodates various car sizes and offers ample working room with its generous inside column space and low minimum runway height. Convenience? Say no more. It’s built-in with a choice of power options, a caster kit for easy movement, drip trays, and a jack tray. Safety is paramount with CE-approval, multiple locking devices, and a high-quality hydraulic system. Upgrade to the Katool KT-4H850 today and make your garage or workshop reach its potential!

4H850 Specifications:

• Lifting Capacity: 8,500 lbs

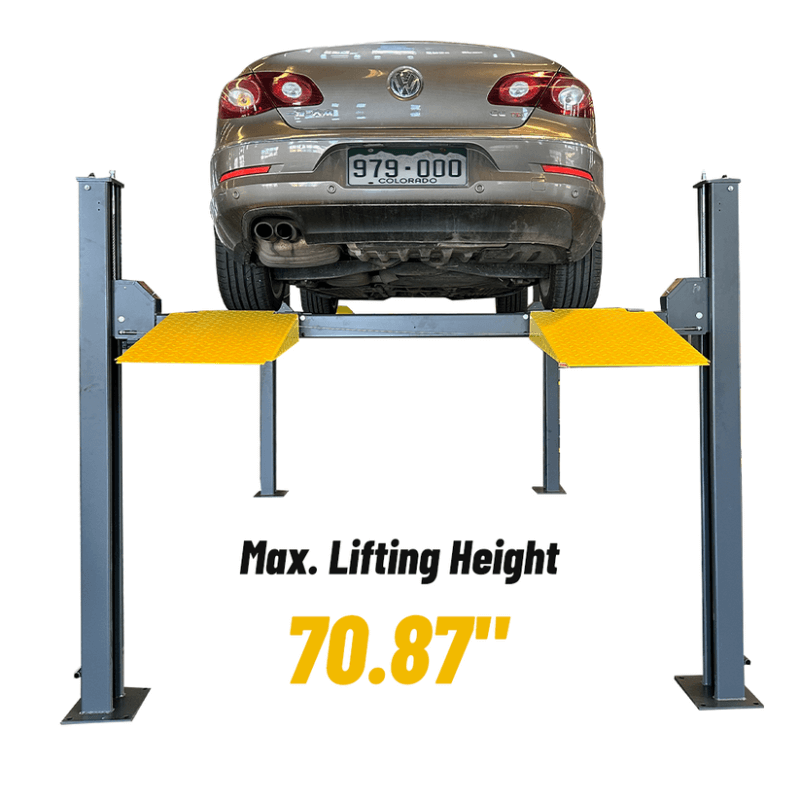

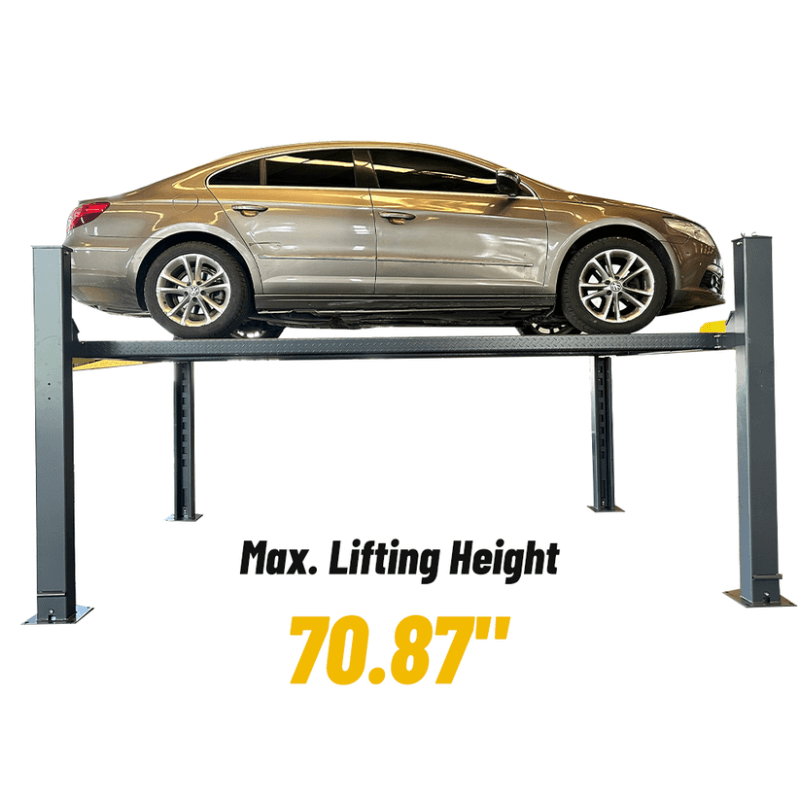

• Maximum Lifting Height: 71"

• Height of Posts: 84"

• Overall Width: 108"

• Drive-Thru Width: 81.5"

• Overall Length (with ramps): 200"

• Overall Length (without ramps): 172"

• Width Inside Columns: 95"

• Width Between Runways: 37"

• Minimum Runway Height: 4.76"

• Lock Positions: Every 4.7" (12 positions)

• Cable Thickness: 3/8"

• Power: 110V / 60Hz / Single Phase or 220V / 60Hz / Single Phase

• Oil Type: AW-46 or AW-32 (cold climates)

• Shipping Dimensions: 167" L x 23" W x 30" H

• Shipping Weight: 1,820 lbs

• Color: Charcoal Grey with Yellow Ramps

Katool KT 4H850 Special Features:

• CE Approved and Certified

• 115% dynamic loading capacity standard

• 150% static loading capacity tested

• Single-point manual safety lock release

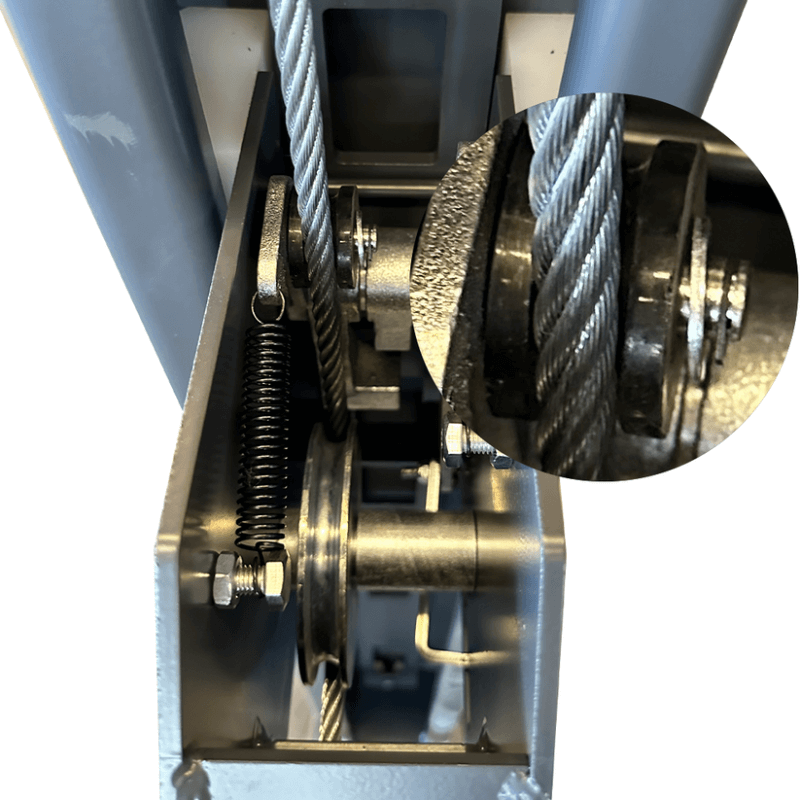

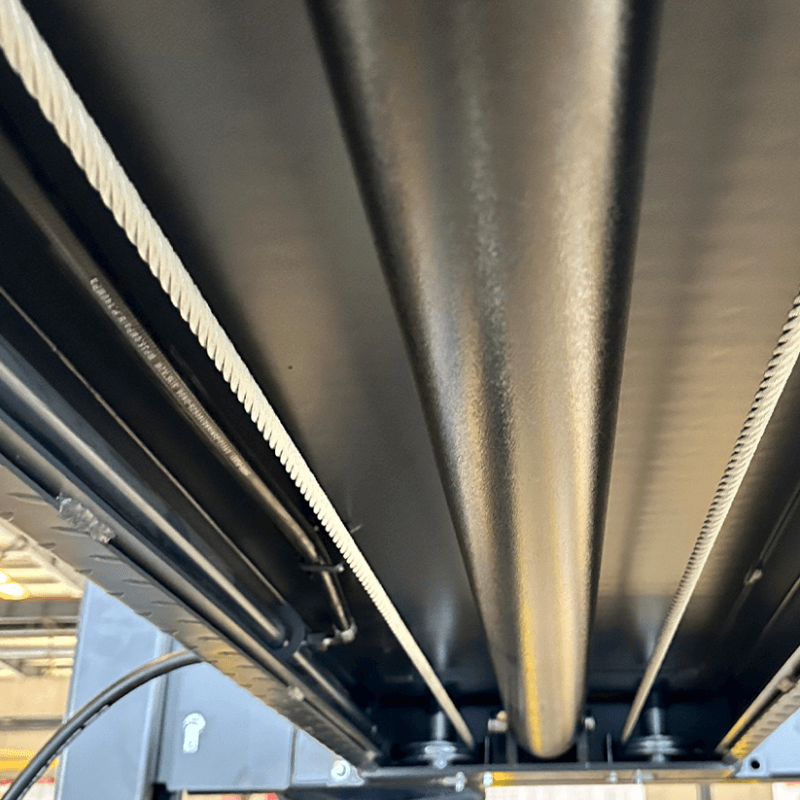

• Four mechanical locking devices with secondary slack-cable safety system

• Power side column installable on either side, front or rear

• Non-skid diamond platforms

• Adjustable safety lock ladders

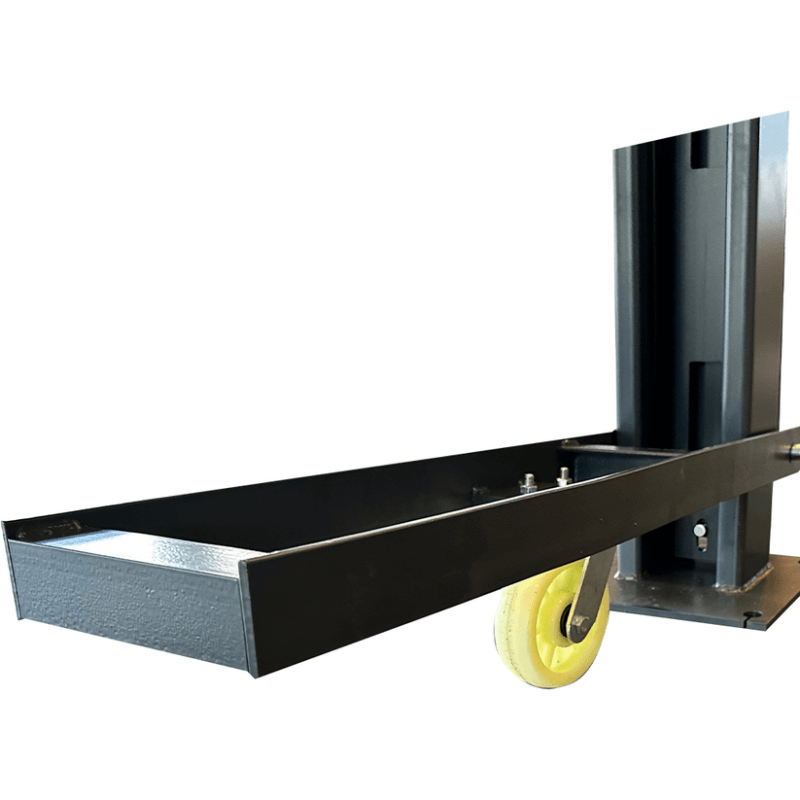

• Includes caster kit for mobility

• Includes two drip trays and one jack tray

• High-quality hydraulic system

*Must be wired to a circuit with 10-gage wire and a 30-amp breaker

Reasons to Buy the KT-4H850 from Katool

Includes the following items

(1) Caster Kit for moving the lift around

(2) Drip Trays

(1) Jack Tray

Variable Motor Mount Location

Motor column can be installed front or rear, at both sides.

CE Approved and Certified

This product has been assessed by the manufacturer and deemed to meet EU safety, health and environmental protection requirements

Locking System

Four mechanical locking devices, each with primary and secondary safety locks, provide a manual safety lock release mechanism.

Katool Warranty

One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

4H850 Manual

  Katool KT-4H850 Installation and Operations Manual

   Katool KT-4H850 Cable Routing Instruction

4H850 Parking Lift Optional Items (sold separately)

• 5,000lb Rolling Jack - KT-RJ50
• 7,000lb Rolling Jack - KT-RJ70

*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.

Warehouse Pickup locations- Contact Us if interested.

• Azuza, CA 91702
• Brookshire, TX 77423
• City of Industry, CA 91744
• Deer Park, TX 77536
• Kalamazoo, MI 49048
• Linden, NJ 07036
• Pooler, GA 31322
• Romeoville, IL 60446

Pallet Dimensions:
