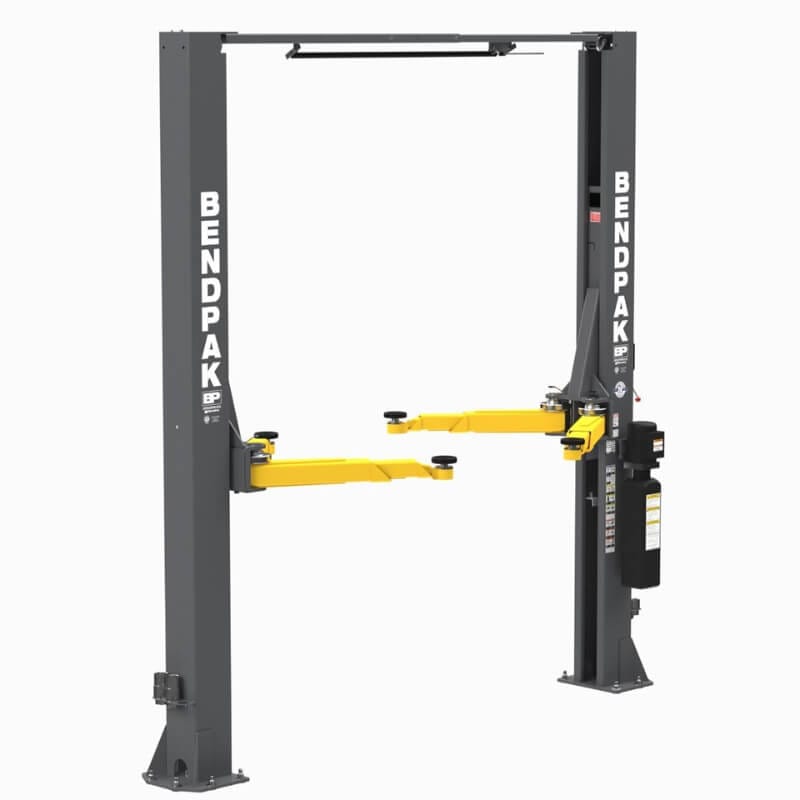

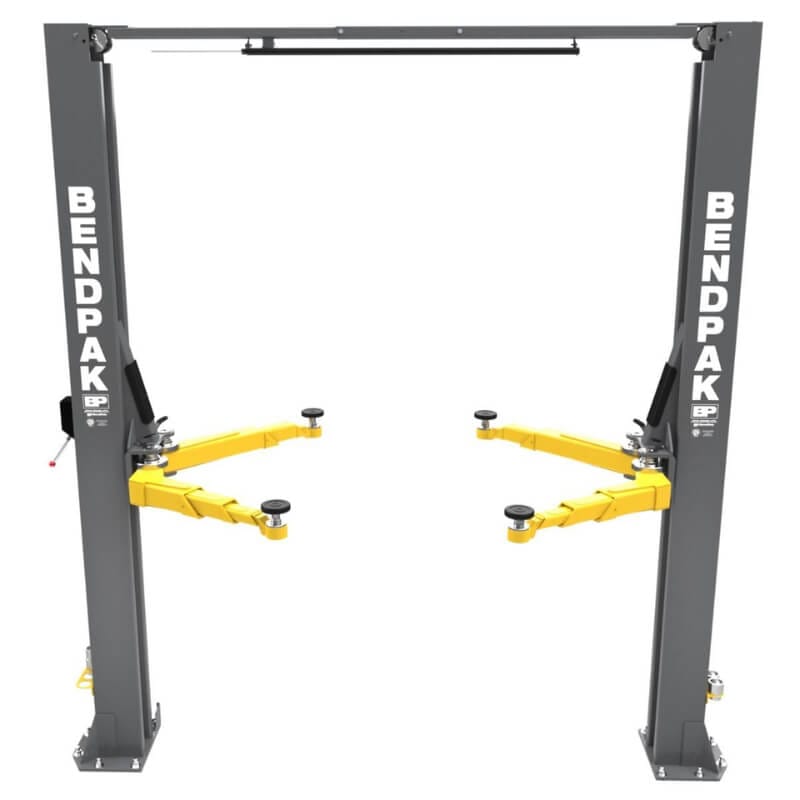

10APX-181 PRO 10,000 lbs 2 Post Combo

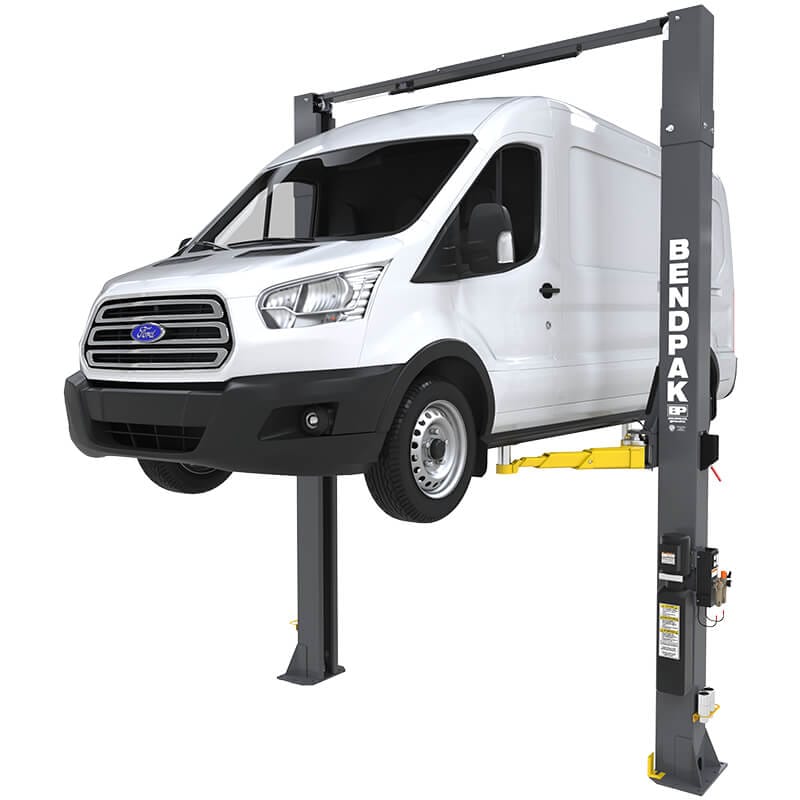

The BendPak 10APX-181 PRO is the ultimate 10,000-lb. capacity two-post lift package engineered to meet the evolving needs of modern auto shops, including the rising demand for EV servicing. Built with precision and purpose, this lift features an impressive 181” overhead beam height, making it ideal for high-roof cargo vans and tall vehicles. With the ability to switch between symmetrical and asymmetrical lifting configurations, and paired with BendPak's Low-Pro™ and Bi-Metric™ arms, the 10APX-181 PRO offers unmatched versatility and clearance.

Designed with a focus on technician safety and productivity, the 10APX-181 PRO comes equipped with cutting-edge features like the revolutionary Automatic Swing Arm Restraint System (ASARS), delivering over 2,000 lbs. of secure grip with minimal operator input. Frame Cradle Pads with rugged steel and polyurethane help stabilize larger vehicles during lifting, ensuring confidence and control. The extra-wide column spacing, extended arm reach, and high-tensile steel construction make this lift a reliable workhorse capable of handling today’s heavier, more complex vehicles.

Included in the combo package is the WSA-100 air-electric workstation—your all-in-one utility station. It features four GFI-protected outlets and two air service connections with built-in filtration, ensuring clean and lubricated air when needed. With integrated hooks for cable management and a durable build, this station adds a layer of convenience and performance to any workspace. Whether you're servicing gas-powered trucks or electric SUVs, the 10APX-181 PRO package is your shop’s key to next-gen vehicle lifting.

10APX 181 PRO Specification

• Lifting Capacity: 10,000 lbs. (4,536 kg)

• Max Capacity (Front/Rear Axle): 5,000 lbs. (2,268 kg) each

• Rise Height: Up to 89" with adapters

• Minimum Pad Height: 4"

• Time to Full Rise: 45 seconds

• Overall Height: 157"

• Overall Width Options: 135" or 145"

• Inside Column Width Options: 108.25" or 118.25"

• Drive-Thru Clearance: 92" or 102"

• Front Arm Reach: 22"–47.5"

• Rear Arm Reach: 29.5"–57"

• Screw Pad Adjustment: 2"

• Max Load Per Arm: 2,500 lbs.

• Motor: 220V AC, 60 Hz, 1 Phase

• Noise Level: Under 70 dB

• WSA-100 Station: 4 GFI Outlets, 2 Air Outlets (Filtered & Lubricated)

BendPak 10APX-181 PRO 2 Post Combo Special Features

10APX

• Durable powder coat finish
• Expandable top beam accommodates wide or narrow drive-thru configurations
• Double-telescoping screw pads offer increased versatility
• Padded overhead safety shutoff bar
• Exclusive Bi-Metric™ arm design for more versatile arm positioning
• Single-point safety release
• Drop-end arms provide a lower pad height
• Dual hydraulic direct-drive cylinders
• Oversized 53" & 59" tall carriages for superior strength and durability
• Electric / hydraulic HVLP power system
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3"
• Automatic arm restraints withstand over 2000-pounds of side force
• 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable
• Oversized cable sheave diameter reduces cable fatigue
• Four triple-telescoping arms
• ALI certified

WSA-100

• Easy to install
• Adapts to any two-post lift and four-post lift
• Electrical outlets equipped with 20 amp industrial GFI protection
• Electrical outlets located above the air service to prevent moisture damage and tangling
• Air service through 2 outlets: one lubricated for tire inflation and one for pneumatic tools
• Air service filter element and lubricator filler port are easily accessible
• Nickel-plated ball valve shutoff
• Powder-coated finish for durability and long life
• Four 110V GFI outlets
• Oiler
• Air supply
• Pressure gauge
• Storage hooks for hose and tools
• Regulator / filter
• Air inlet

Frame Cradle Pads

• Set of 4
• 60mm pin

Medium Adapter (60mm Pin)

• Set of 4
• 2.5”

Tall Adapter (60mm Pin)

• Set of 4
• 5”
