HD2P-9KMSC 9,000lb 2 Post Lift by Titan

Say goodbye to cramped, awkward vehicle maintenance with the Titan HD2P-9KMSC 9,000 lb 2-Post Lift – Clear Floor. Designed for top-tier garages and passionate car enthusiasts, this beast offers a hefty 9,000 lb capacity and a max lifting height of 82-1/4” with adapters, making it perfect for anything from sedans to larger trucks. Its clear-floor design ensures complete access beneath your vehicle without tripping over cables or obstacles. Plus, the direct drive hydraulic system and single-point lock release make operating this lift effortless and safe.

Every detail of the HD2P-9KMSC is geared for convenience and reliability. From the steel hydraulic oil reservoir to the advanced 3-stage front arms, every feature is built for flexibility and long-term use. The Power on Green LED keeps things user-friendly, while the overhead shut-off bar with a safety limit switch prevents accidental over-extension. With thoughtful additions like rubber door guards, steel toe guards, and a rugged powder-coated finish, this lift is a durable, efficient investment. And thanks to its solid warranty, you can lift with confidence, knowing you’re backed by Titan’s trusted quality. This lift is the one!

9KMSC Specifications

• Type: Clearfloor / Asymmetric

• Lifting Capacity: 9,000 lb

• Lifting Time: 50–60 sec

• Overall Height*: 141-3/4”

  • Cylinders extend 7-7/8” through top plates at max lift

• Width Between Posts: 111-1/2”

• Drive-Thru Clearance: 100-3/4”

• Low Pad Height: 3-3/4”

• Lifting Height: 74-3/4” (up to 82-1/4” using truck adapters with pad mounts threaded up)

• Power Unit: 220V / 1Ph / 60Hz

• Motor: 3HP

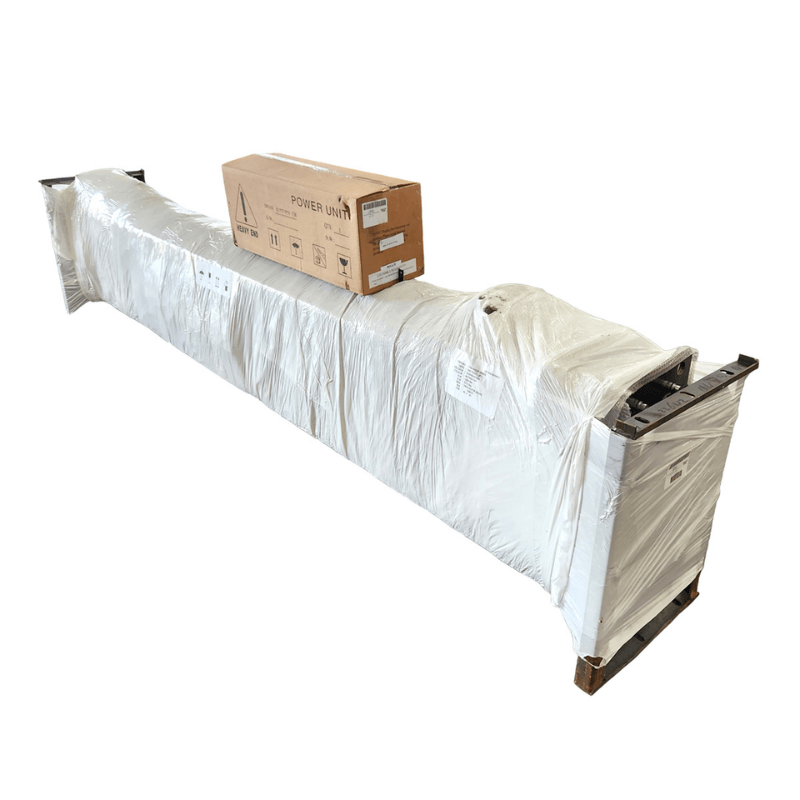

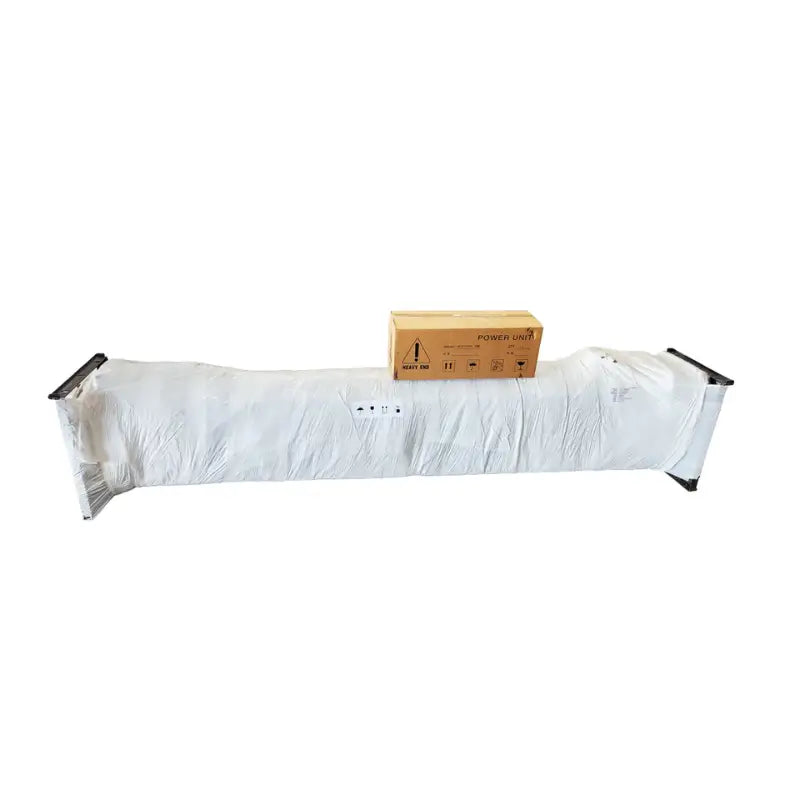

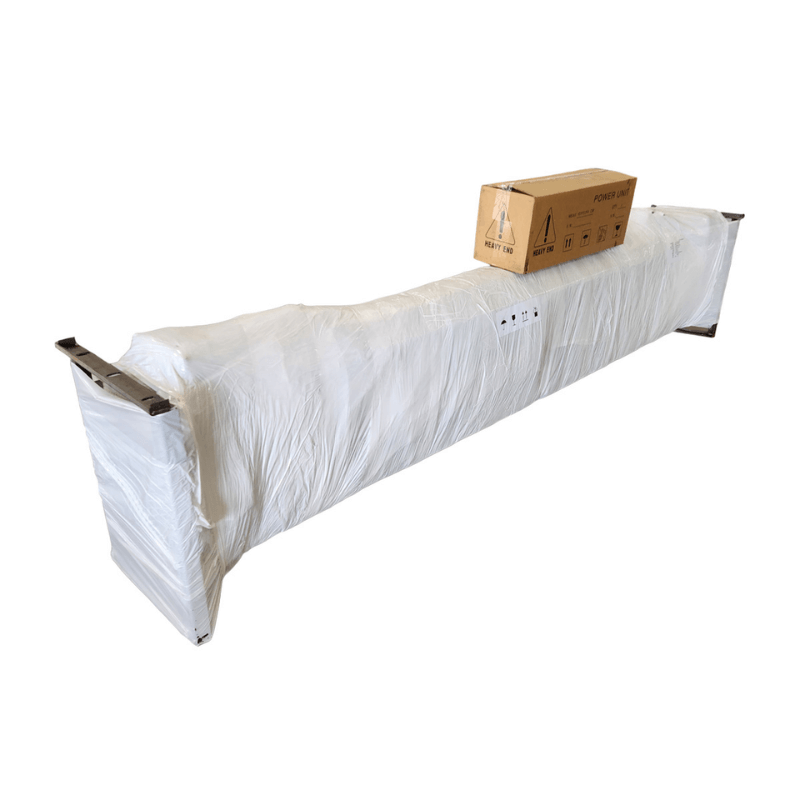

• Shipping Dimensions: 142"L x 22"W x 42"W - 1,380lbs

Titan 9,000lb 2 Post Lift Special Features

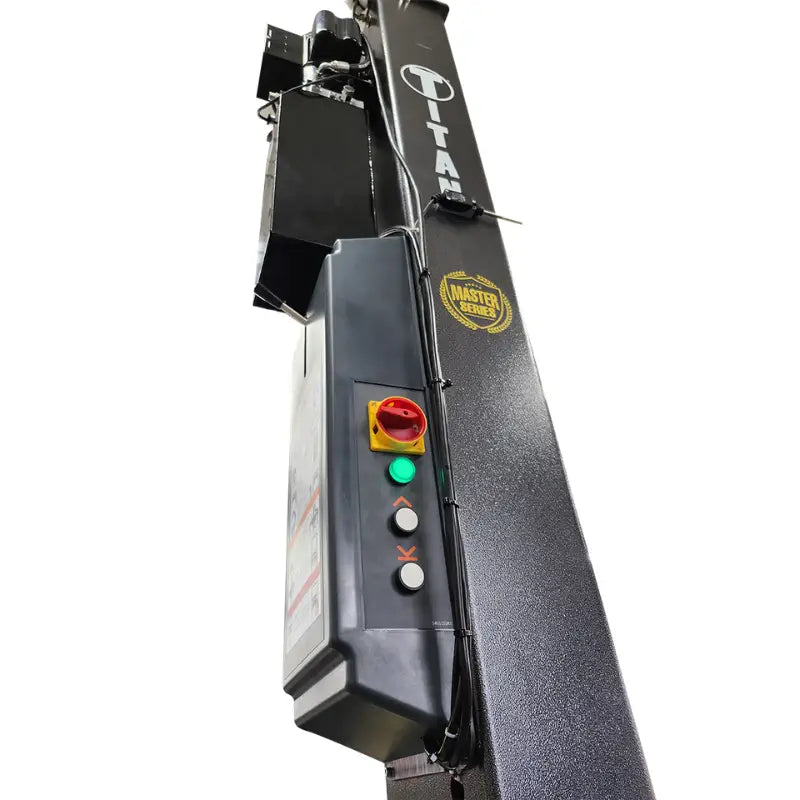

• Power-on Green LED

• Single-button operation

• Included electrical disconnect

• Single-lever lowering

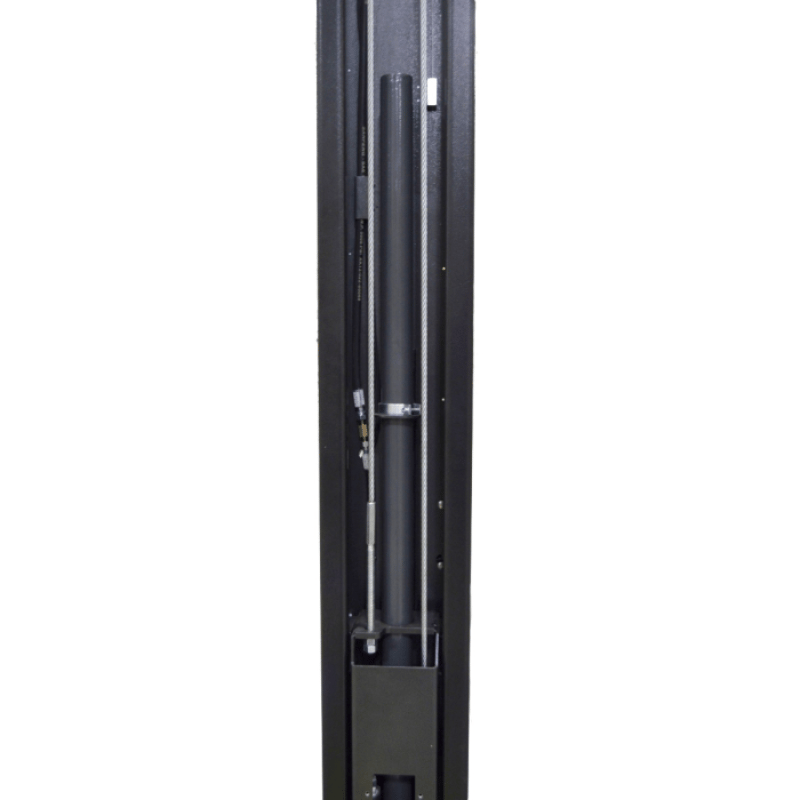

• Direct drive hydraulic cylinders

• Serviceable arm restraint locks

• Thread-up lifting pads

• Carriage limit switch

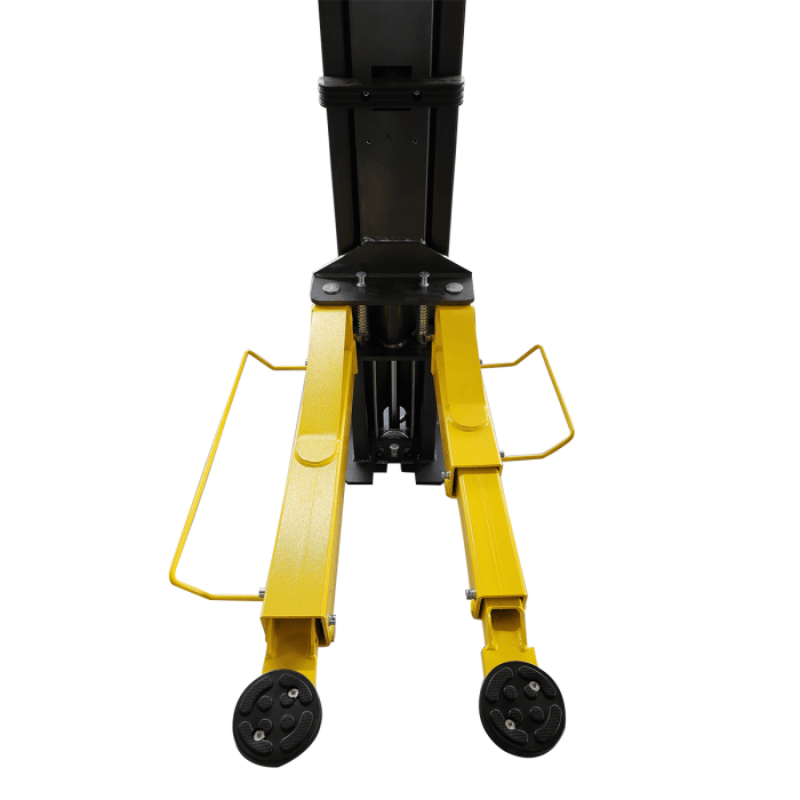

• 3-stage front arms

• Single-point lock release

• European-style carriages

• 4” truck adapters

• Rubber door guards

• Steel toe-guards

• Steel hydraulic oil reservoir

• Durable textured powder-coated finish

• 5-Year Structural Warranty

• 2-Year Electric & Hydraulic Parts Warranty

• Lifetime Warranty on Nylon Slide Blocks

HD2P-9KMSC Manual

   HD2P-9KMSC Installation and Operations Manual

   HD2P-9KMSC Spec Sheet
