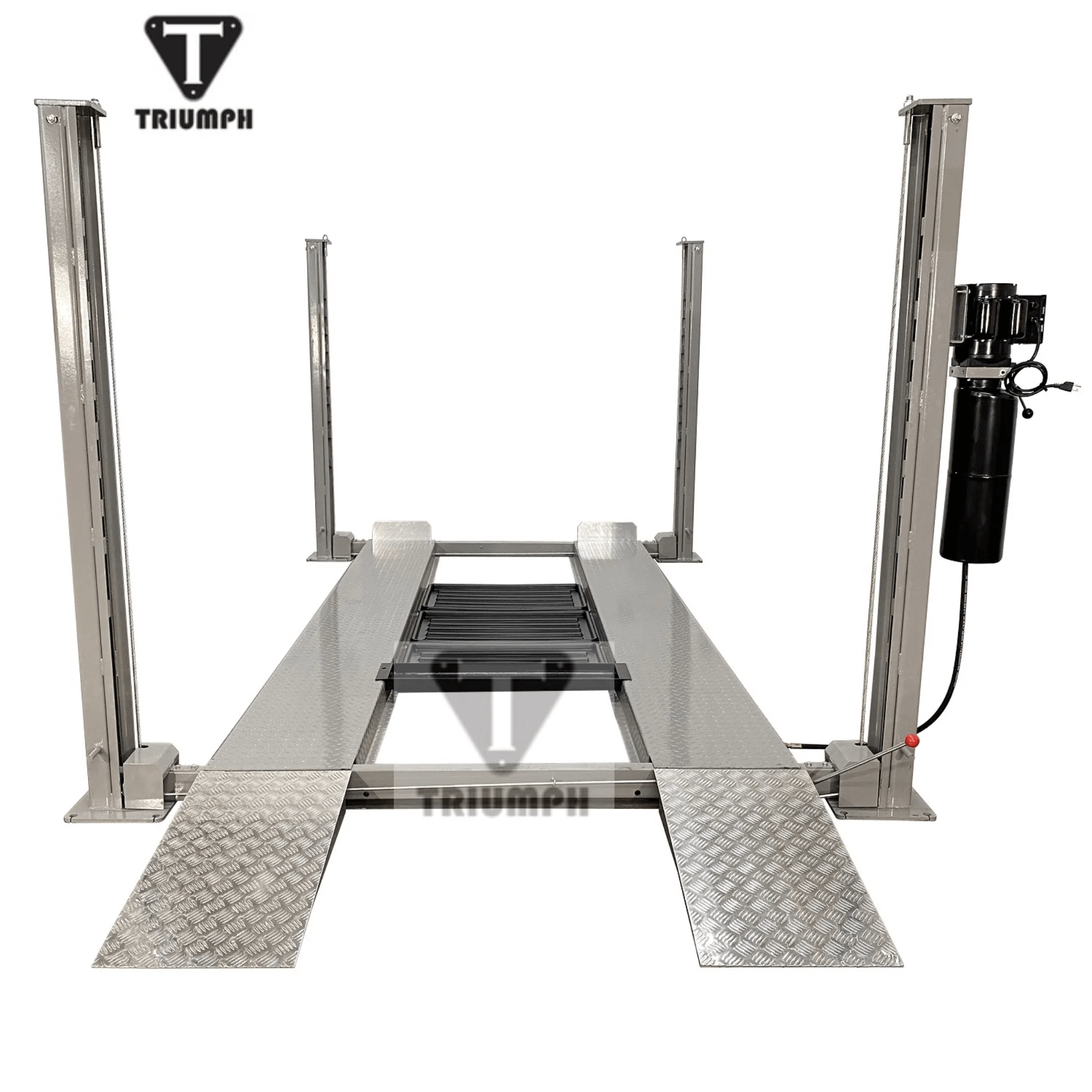

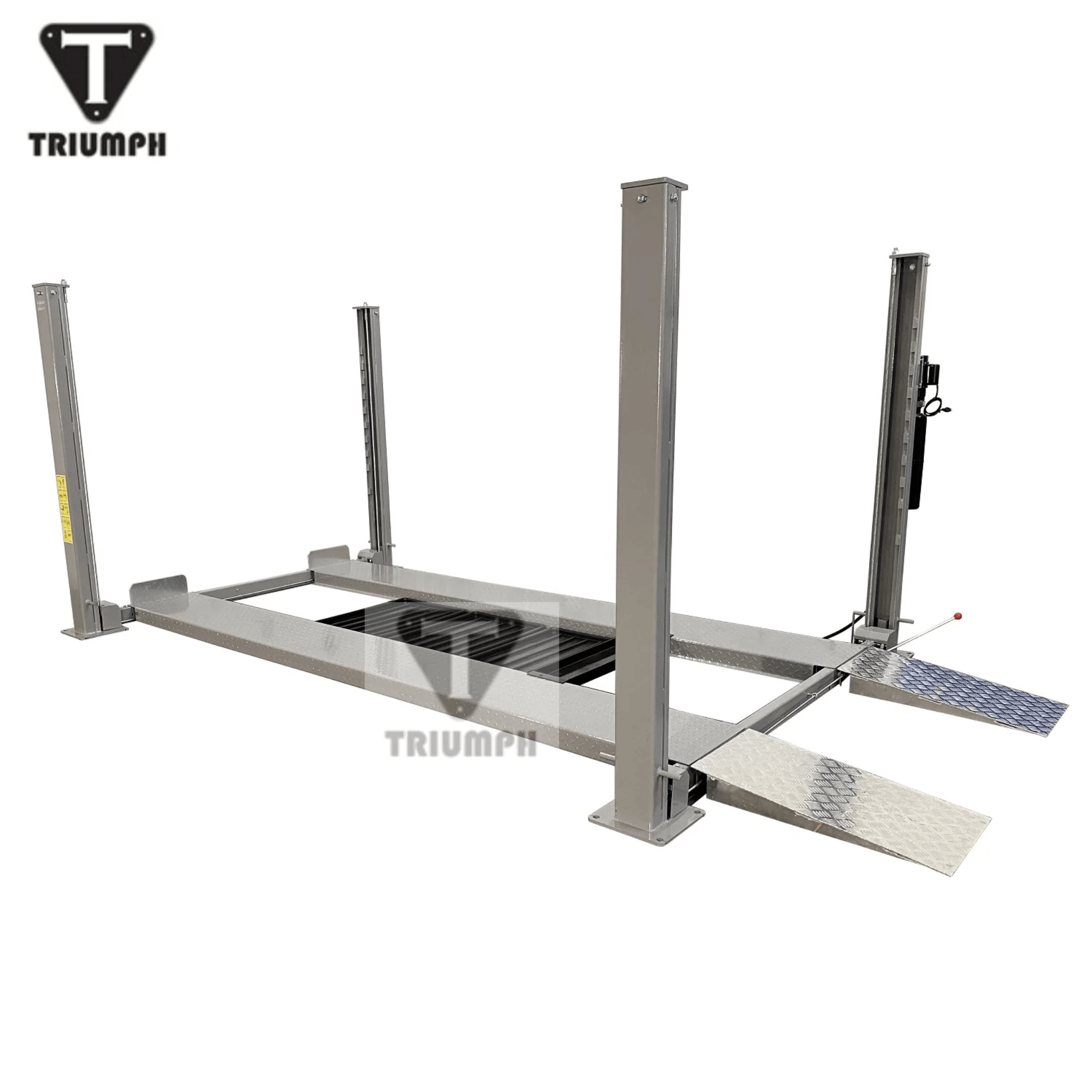

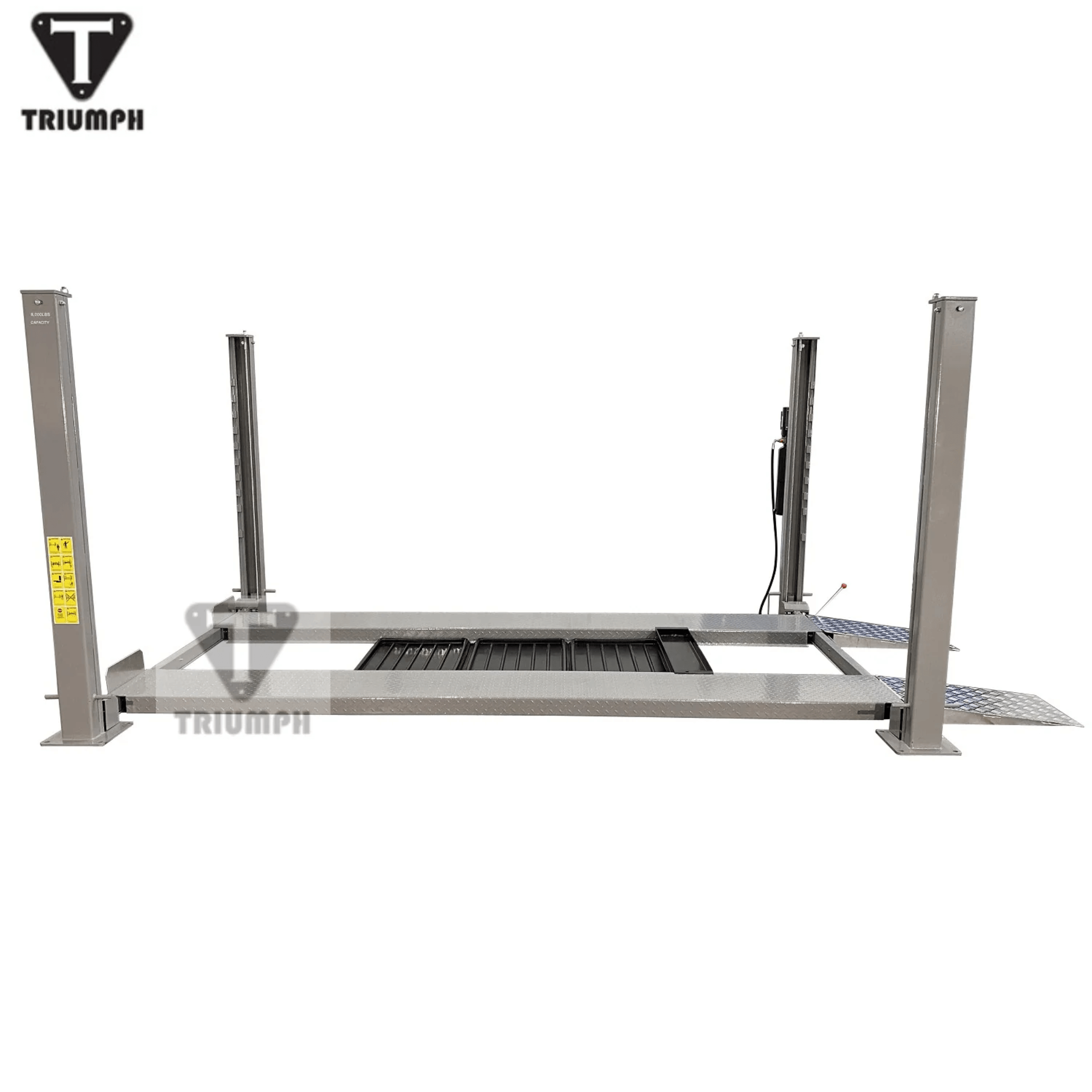

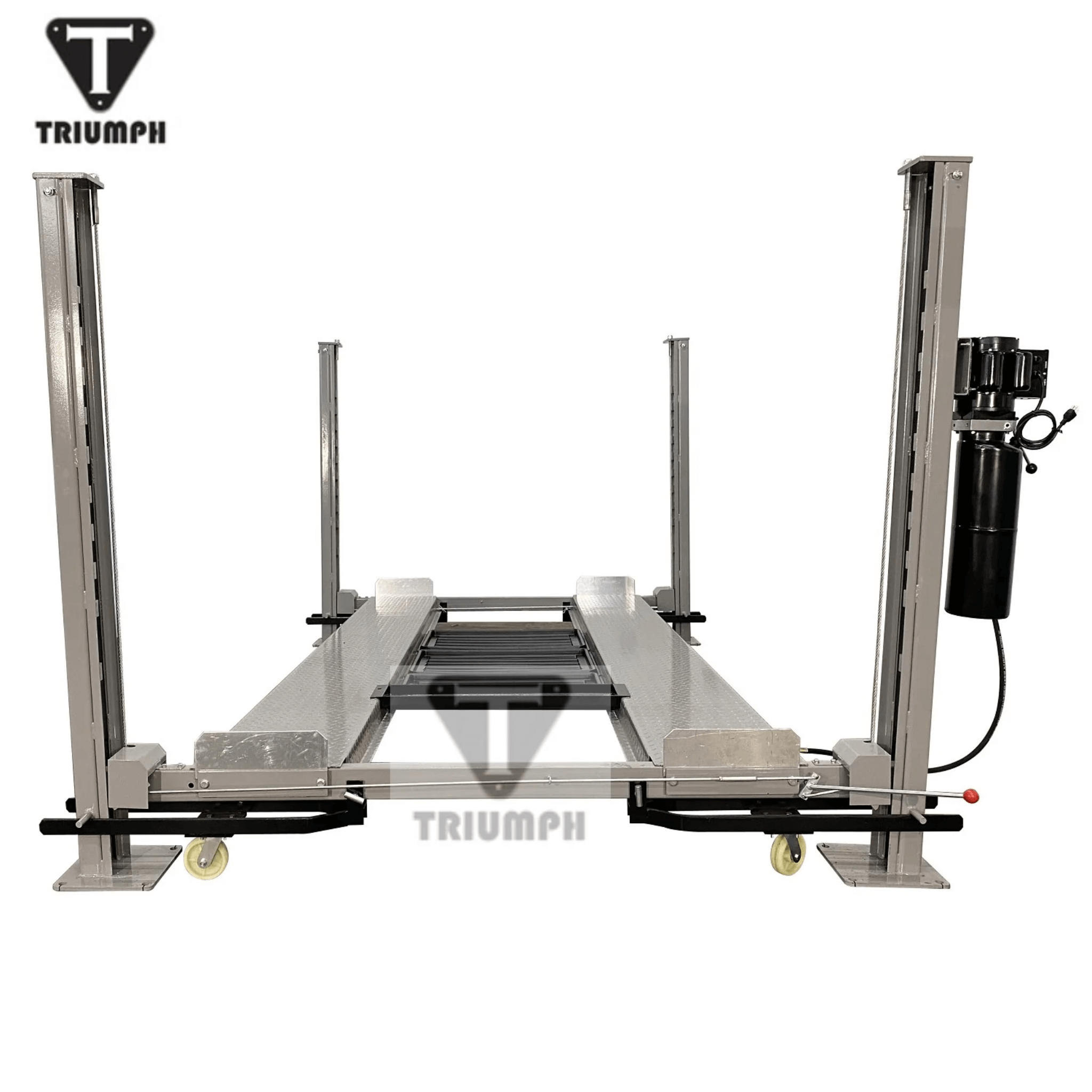

NSS-8XLT 8,000 lb Vehicle Storage Lift by Triumph

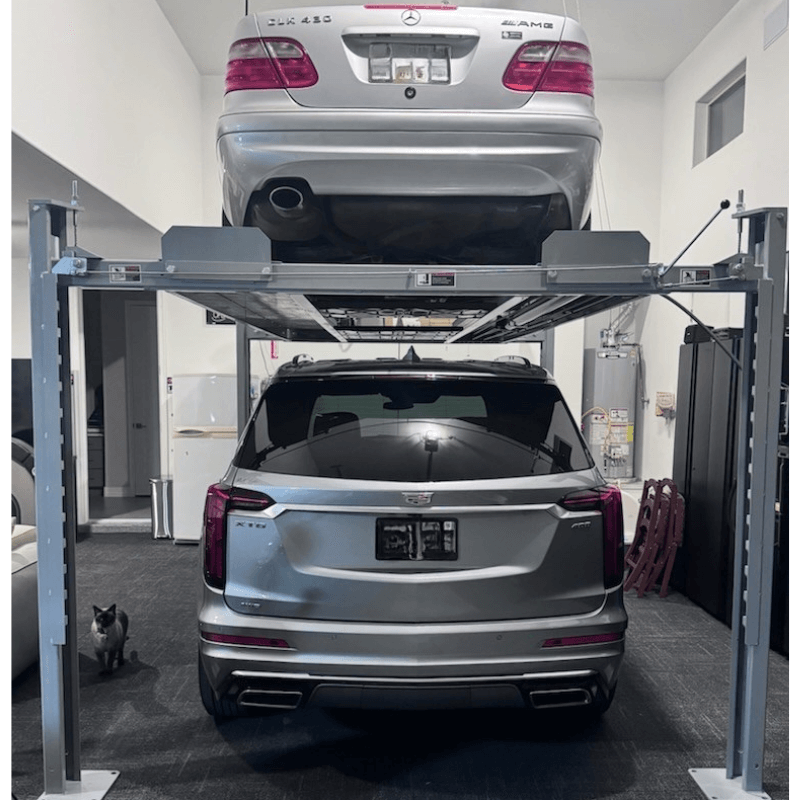

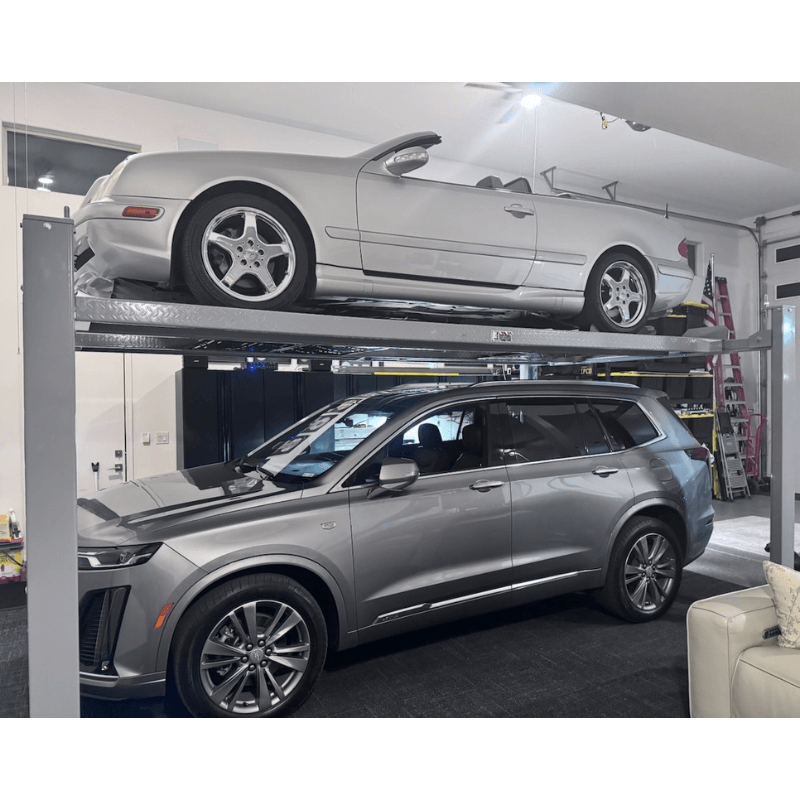

Is your single-story garage cramping your style like a Lincoln Navigator on Italy's tight streets? The NSS-8XLT 8,000 lb capacity Parking Lift by Triumph is your ticket to the HOV lane of home garages. This four-post lift doesn't just double your parking space - it transforms your humble garage into a two-story automotive haven, perfect for the car enthusiast who refuses to choose between their daily driver and weekend cruiser.

With a jack tray for easy maintenance, three drip trays to keep things cleaner than a showroom floor, and a caster kit for mobility that would make a NASCAR crew chief jealous, the NSS-8XLT is more versatile than LeBron James. Standing 94 inches tall with an 82-inch lift height, it accommodates everything from a Mazda MX-5 to a Chevy Silverado Dually. Add in 10 locking positions, a single-point release for safety, and flat rate shipping fee to the lower 48, and you've got a garage upgrade that's more thrilling than finding the keys to a Mustang II in your birthday card.

Triumph NSS 8XLT Specifications

• Capacity: 8,000 lbs

• Overall Height: 94"

• Overall Length (without ramps): 190"

• Overall Length (including ramps): 210"

• Overall Width (base plate to base plate): 112"

• Lift Height: 82"

• Height Under Runway: 79"

• Runway Length: 180"

• Drive-Thru Width: 99"

• Runway Width: 18"

• Between Runways: 37"

• Lowered Height: 5"

• Locking Positions: 10

• Base Plate Size: 12" x 12"

• Lock Release: Single Point

• Lift Time: 40 seconds

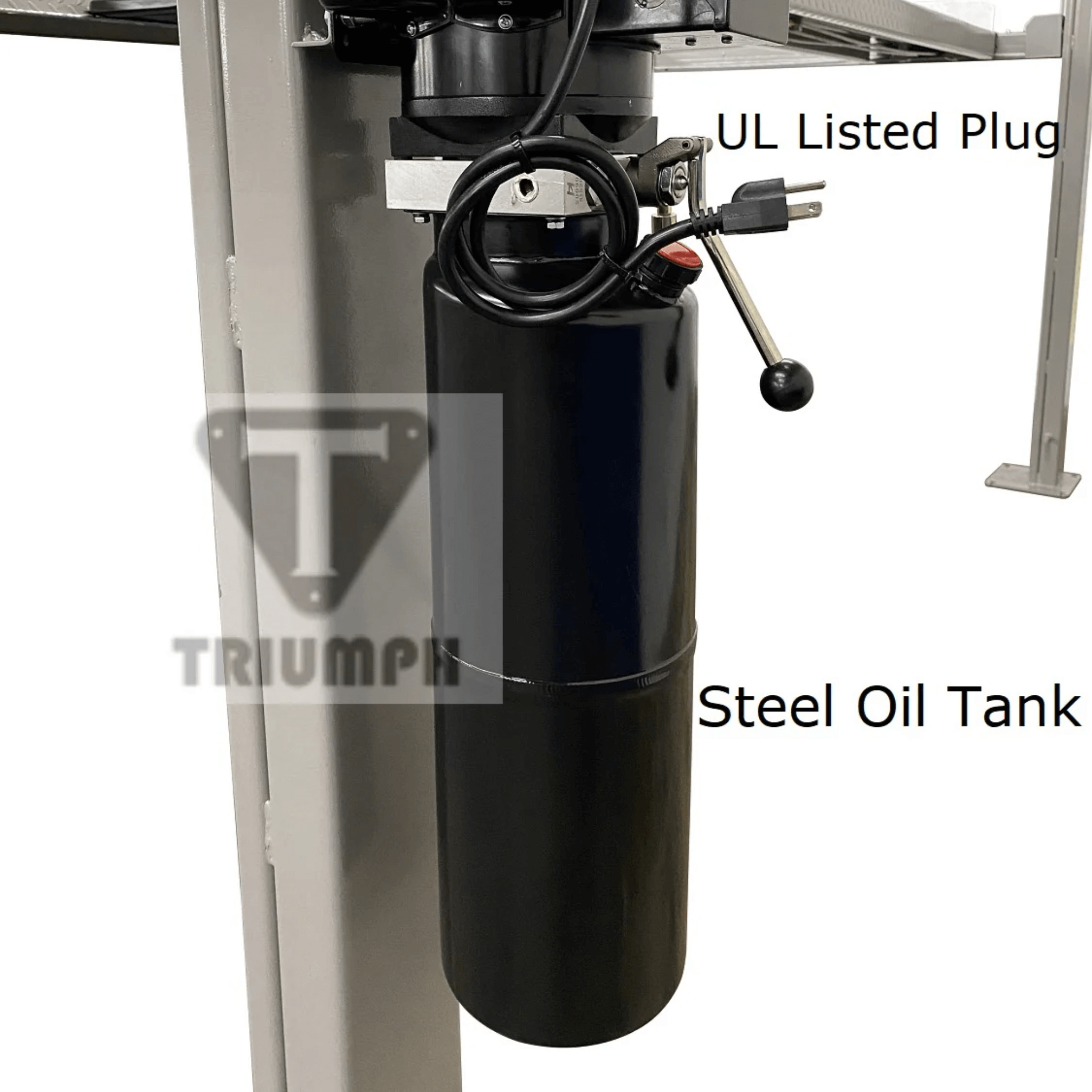

• Motor: 3 HP

• Voltage: 110 Volts (30 amp breaker)

• Pallet Dimensions: 184" x 21" x 29" - 1,695 lbs

Triumph XLT 4 Post Lift Special Features

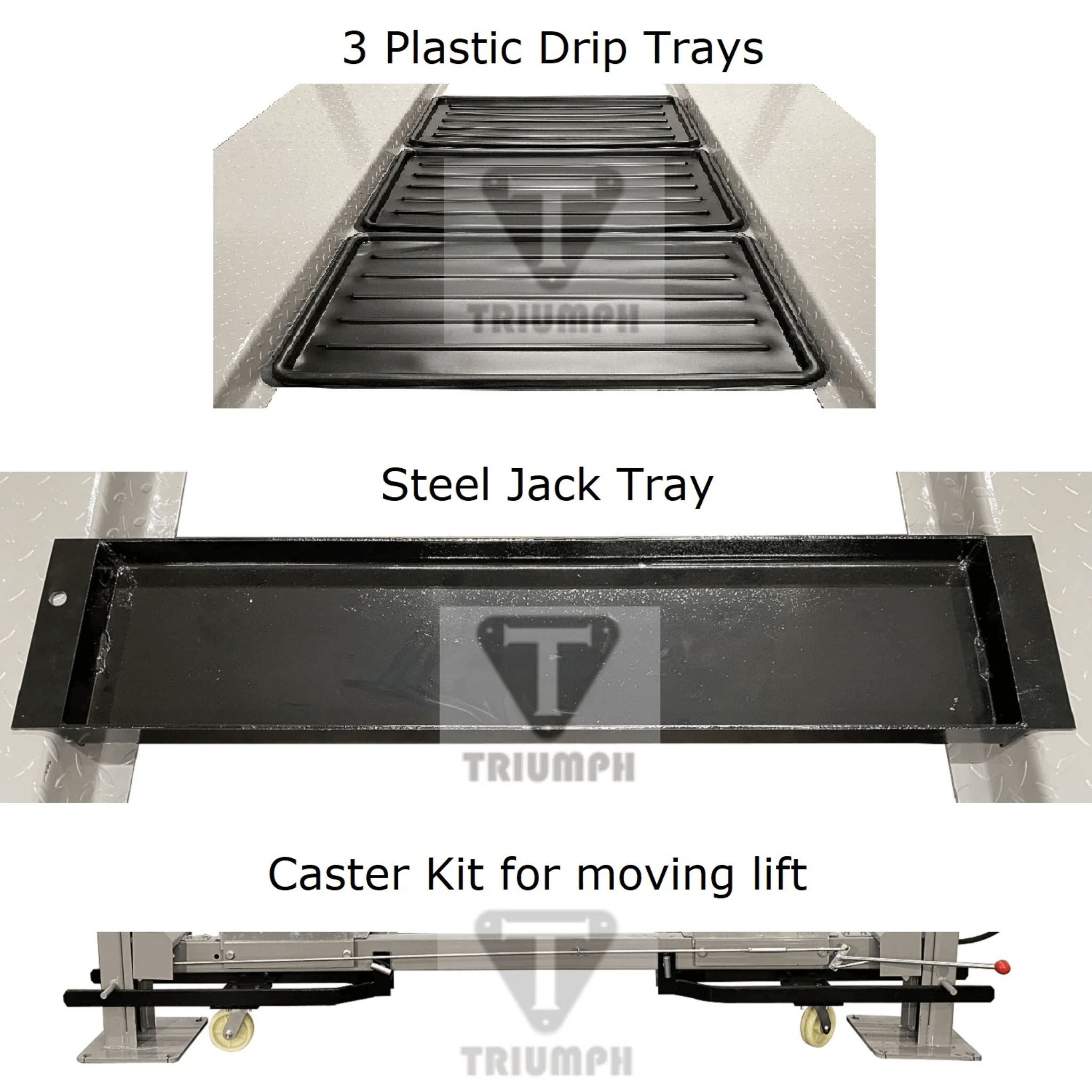

• Includes Caster Kit – for easy mobility around the garage

• Jack Tray – allows use of a bottle jack or floor jack for lifting one end of the vehicle

• Three Drip Trays – prevents fluids from the upper vehicle from dripping onto the lower vehicle

• Automatic Locking – engages at 10 different positions for secure operation

• Portable and Easy to Set Up – convenient for both storage and service needs

• Standard Color: Grey

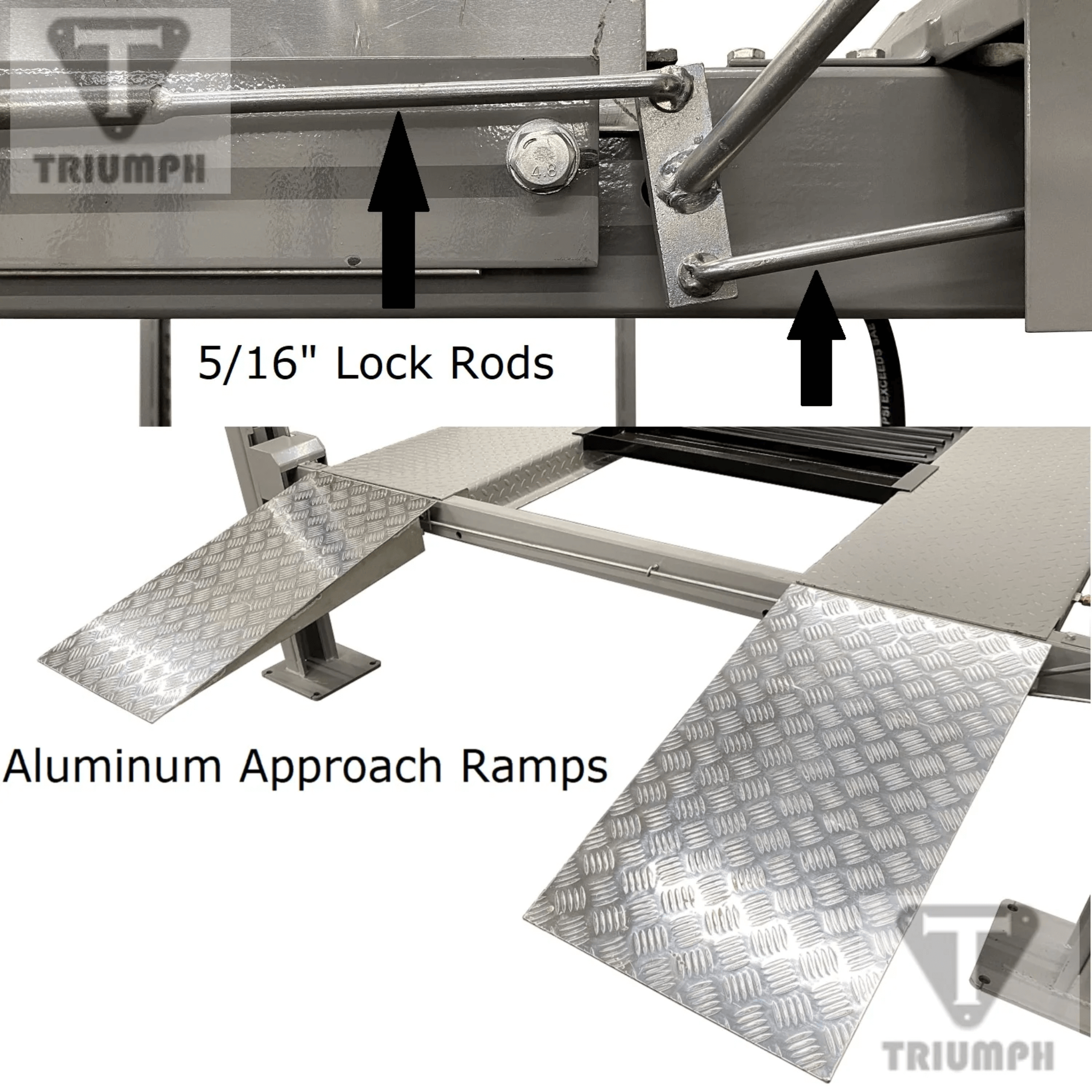

• Aluminum Ramps - makes for easy removal

• Warranty – 1 year parts only

• Certification – CE Certified and built in ISO9001 quality-certified factories

• Optional Item (Sold Separate)
  • Triumph NSS-8 Storage Lift Bridge Jack SJ35

NSS-8XLT Manual:

  Triumph NSS-8XLT Lift Manual

Warehouse Pickup locations (No shipping charge):

• Columbus, OH
• Fort Worth, TX
• North Las Vegas, NV

*An additional $200 freight fee is required for locations in Northern CA, SD, ND, MT, & WY. After initial purchase, a separate link will be sent to complete your transaction.
