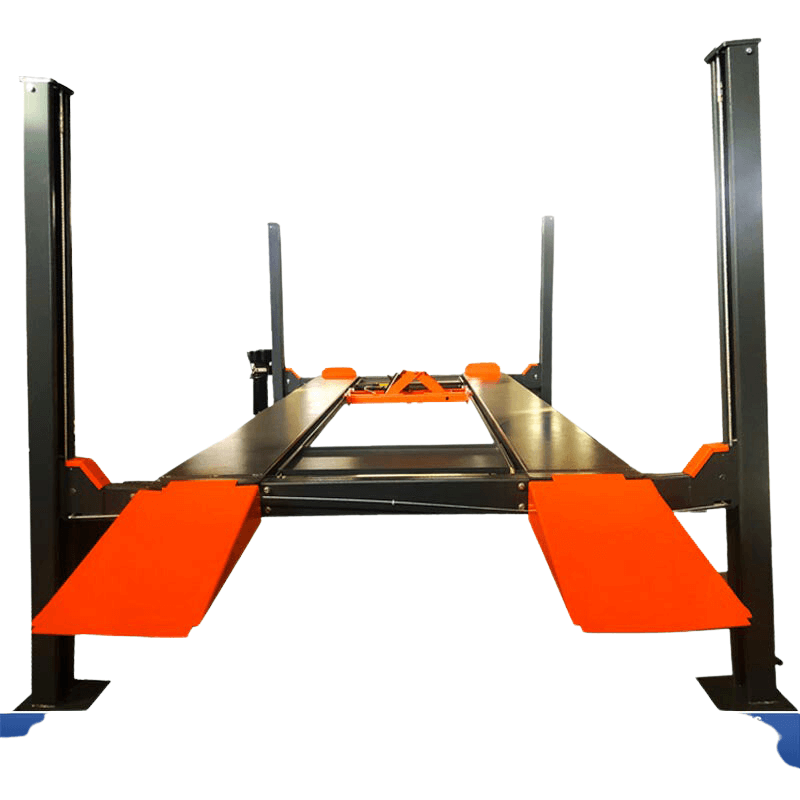

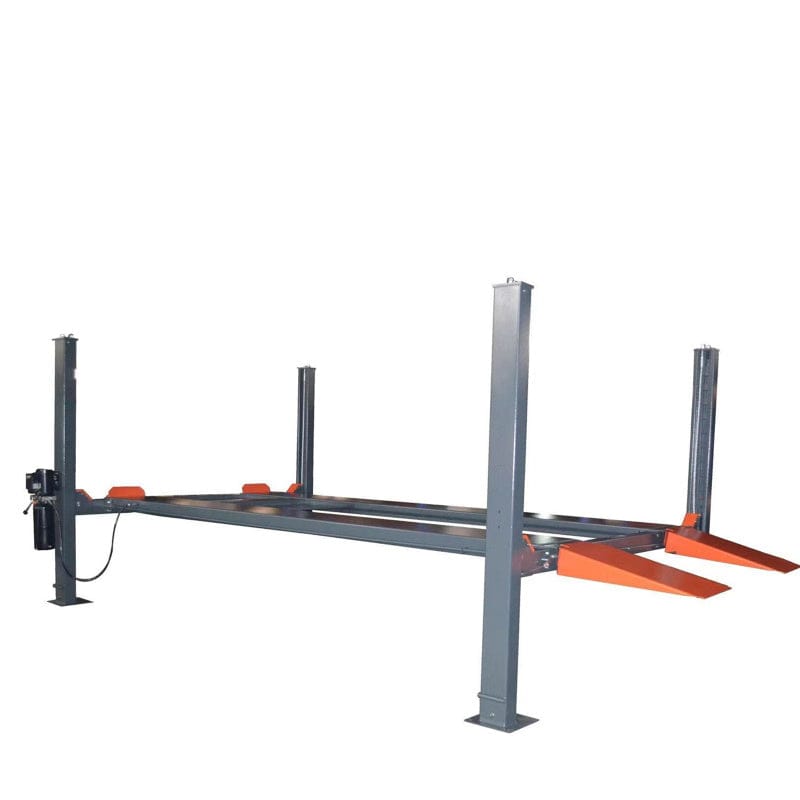

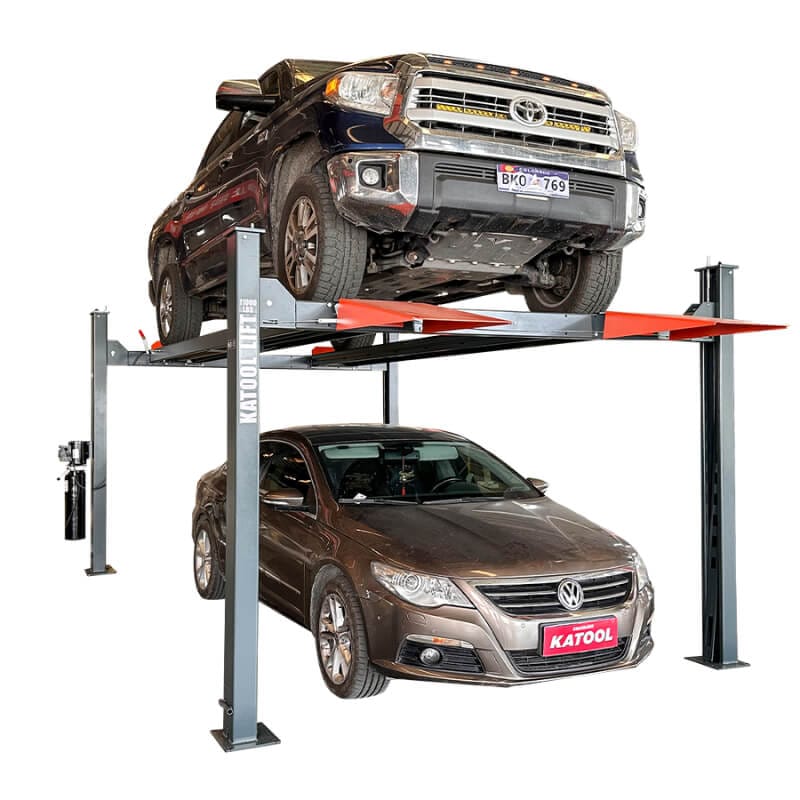

Katool KT-4H110 Vehicle Storage Lift

Drowning in clutter and struggling to park your vehicles? The Katool KT-4H110 Vehicle Storage Lifts is your space-saving solution for a cleaner, more organized garage. This powerful 4-post lift has a massive 11,000-lb lifting capacity, accommodating even heavy-duty trucks and SUVs. The KT-4H110 dimensions are so compact that it fits perfectly into tight spaces with an overall width of just 126". It effortlessly elevates vehicles to a comfortable 84.25" height for easy maintenance or storage. This lift offers the perfect blend of power and functionality, with a minimum runway height of just 6.2" for slammed cars. Convenience matters with a choice of 110V or 220V power and included drip trays and jack tray.

Stop sacrificing space! Upgrade to the Katool KT-4H110 and experience the freedom of a clean, organized garage. CE-approved and certified with four mechanical locking devices and a non-slip platform, safety is never compromised. Get yours now and reclaim your precious garage space!

Katool 11000 lb Lift Specifications

• Lifting Capacity: 11,000 lbs

• Maximum Lifting Height: 84.3"

• Height Under Runway: 78.7"

• Drive-Thru Clearance: 98.3"

• Runway Width (outside to outside): 79.7"

• Height of Posts: 95"

• Overall Width: 126"

• Overall Length (with ramps): 223"

• Overall Length (without ramps): 191"

• Width Inside Columns: 113"

• Width Between Runways: 45"

• Minimum Runway Height: 6.2"

• Lock Positions: Every 4.7" (14 positions)

• Power: 110V / 60Hz / Single Phase or 220V / 60Hz / Single Phase (30A breaker required)

• Oil Type: AW-46 or AW-32 (cold climates)

• Shipping Dimensions: 195" x 26" x 32"

• Shipping Weight: 2,119 lbs

• Included: Drip trays, jack tray

KT 4H110 Special Features:

• CE Approved and Certified

• 115% dynamic loading capacity standard

• 150% static loading capacity tested

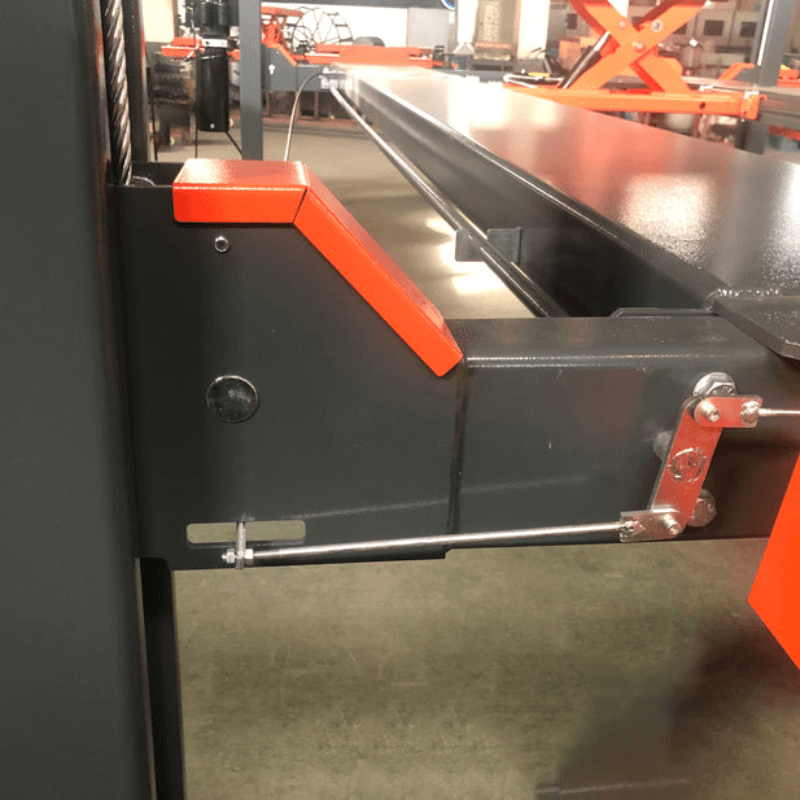

• Single-point manual safety lock release

• Four mechanical locking devices for enhanced safety

• Redundant primary and secondary safety lock systems

• Flexible power-side column placement (front, rear, left, or right)

• Non-skid diamond plate runways

• Adjustable safety locking ladder system

• Optional caster kit and rolling jack trays available (sold separately)

• Jack tray and drip trays included

• Power supply options: standard 110V motor with optional 220V upgrade

• Warranty

  • One-year (12 months) warranty on all parts against manufacturing defects

  • Additional three-year (36 months) warranty on structural components

Katool 4H110 Manual:

   Katool KT-4H110 Installation and Operations Manual

4H110 Vehicle Storage Lifts Optional Items (sold separately):

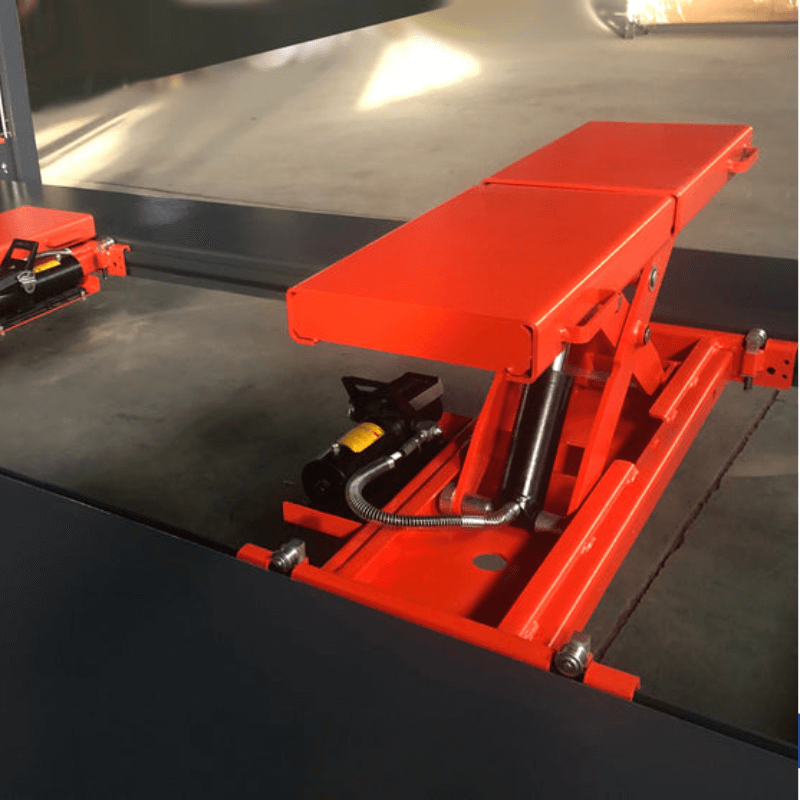

• 5,000lb Rolling Jack - KT-RJ50

• 7,000lb Rolling Jack - KT-RJ70
• Caster Kit

*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.
